HikVision 16 Port Fast Ethernet Smart POE Switch

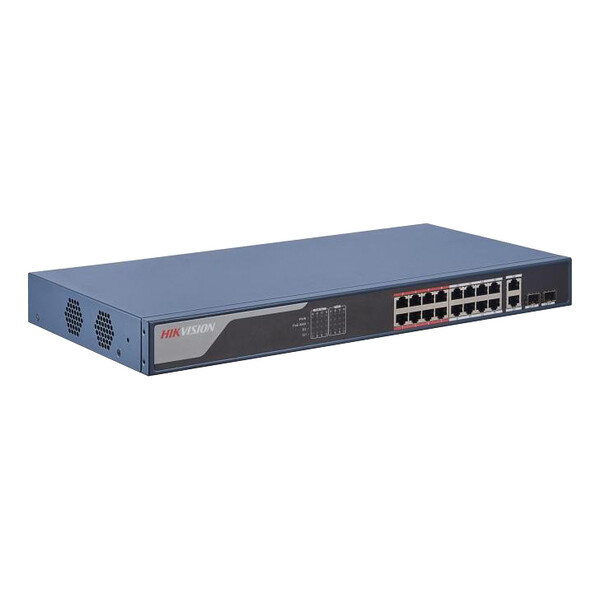

Hikvision 16 Port Fast Ethernet Smart POE Switch

Login or register to see prices
SKU: DS-3E1318P-EI Categories: , Brand:

Summary

The Hikvision DS-3E1318P-EI (B) is a 16-port Fast Ethernet Smart PoE Switch designed for efficient management and maintenance of surveillance systems. It offers features such as VLAN support, PoE watchdog, and loop prevention, allowing for easy deployment and monitoring of network health. With a total PoE power budget of 230 W and long-range PoE transmission capabilities, this switch is ideal for expanding and maintaining robust security networks.

Features

  • Metal material construction
  • Rack-mounted installation with mounting ears
  • Supports one-click activation and remote management via Hik-Partner Pro
  • Displays port rate, bandwidth utilization, and PoE power usage
  • Supports system maintenance via web and remote management
  • Supports cable detection and SNMP v1/v2c for third-party management
  • Supports port mirroring for fault locating

Specifications

General

  • Shell : Metal material
  • Net Weight : 2.59 kg (5.71 lb)
  • Gross Weight : 3.68 kg (8.11 lb)
  • Dimensions (W × H × D) : 440.00 mm × 44.00 mm × 220.80 mm (17.32” × 1.73” × 8.69”)
  • Operating Temperature : 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity : 5% to 95% (no condensation)
  • Relative Humidity : 5% to 95% (no condensation)
  • Power Supply : 100-240 V AC, 50/60 Hz, Max. 4 A
  • Installation Mode : Rack (equipped with mounting ears)
  • Max. Power Consumption : 250 W
  • Power Consumption in Idle : 20 W
  • Surge Protection : 6 kV

Network Parameters

  • Ports : 16 × 10/100 Mbps PoE port, 2 × Gigabit combo
  • MAC Address Table : 16 K
  • Switching Capacity : Whole-Device Performance: 9.2 Gbps, Port Performance: 7.2 Gbps
  • Packet Forwarding Rate : Whole-Device Performance: 6.84 Mpps, Port Performance: 5.36 Mpps
  • Internal Cache : 4 Mbits

PoE Power Supply

  • PoE Standard : IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port : Ports 1 to 16
  • Max. Port Power : 30 W
  • PoE Power Budget : 230 W

Software Function

  • Long Range : Ports 1 to 16: up to 300 m
  • VIP Port : Ports 1 to 8: data on VIP ports is preferentially forwarded
  • Port Isolation : Ports 1 to 16: port isolation mode to improve network security
  • PoE Watchdog : Ports 1 to 16: auto detect and restart cameras
  • Link Aggregation : Support static link aggregation
  • Loop Prevention : Support 802.1D STP and 802.1w RSTP

VLAN

  • VLAN Support : 802.1Q, Configurable VLAN ID from 1-4094
  • Max. VLAN : 4094
  • Port Mode : Support Trunk, Access port mode

System Maintenance

  • Device Management : Support via web
  • DHCP Client : Enabled by default
  • Super IP : Fixed IP address (10.180.190.200)
  • Management : Support via Hik-Central Pro and Hik-Partner Pro
  • Cable Detection : Support for open circuits, short circuits, and length detection
  • Peer Device Discovery : Support 802.1ab LLDP
  • SNMP : Support v1/v2c
  • Port Mirroring : Support for fault locating

Approval

  • EMC : CE-EMC, IC, RCM
  • Safety : CB, CE-LVD
  • Chemistry : CE-RoHS, WEEE, Reach

Downloads

Additional information

Weight1 kg
Series

Device Type
