HikVision 8 Port Fast Ethernet Smart POE Switch

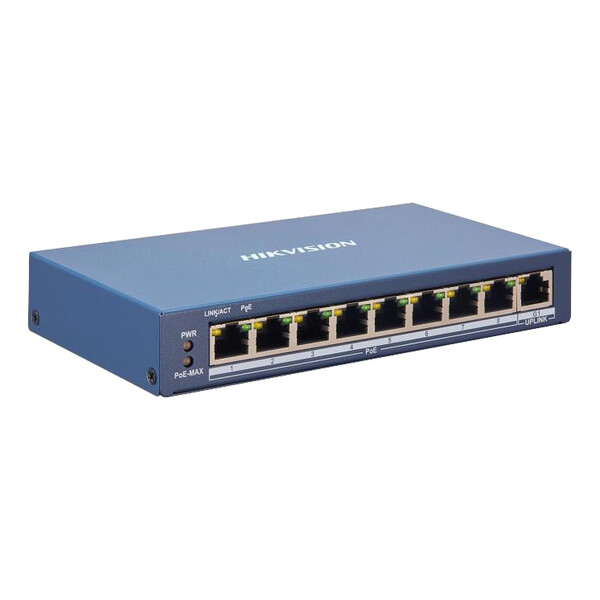

Hikvision 8 Port Fast Ethernet Smart POE Switch

Login or register to see prices
SKU: DS-3E1309P-EI Categories: , Brand:

Summary

The Hikvision DS-3E1309P-EI is an 8 Port Fast Ethernet Smart PoE Switch designed to provide efficient network connectivity and power supply for IP cameras and other PoE devices. It features 8 PoE ports and 1 Gigabit RJ45 port, with a total PoE power budget of 110 W. The switch supports advanced networking features such as VLAN, PoE watchdog, and STP/RSTP loop prevention, making it ideal for enhancing network security and reliability. With up to 300 m long-range PoE transmission and 6 kV surge protection, this switch is built to handle demanding network environments.

Features

  • 8 × 10/100M PoE ports, 1 × Gigabit RJ45 port
  • Total PoE power budget 110 W
  • Support 802.1Q VLAN
  • Support PoE watchdog to detect and restart the cameras that do not respond
  • Support STP/RSTP loop prevention
  • Support cable detection to locate failure
  • Up to 300 m long-range PoE transmission
  • 6 kV surge protection

Specifications

General

  • Shell : Metal material, fan-free design
  • Net Weight : 0.35 kg (0.77 lb)
  • Gross Weight : 1.114 kg (2.45 lb)
  • Dimensions (W × H × D) : 170.00 mm × 27.60 mm × 93.10 mm (6.69” × 1.09” × 3.67”)
  • Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity : 5% to 95% (no condensation)
  • Relative Humidity : 5% to 95% (no condensation)
  • Power Supply : 54 V DC, 2.22 A
  • Installation Mode : Desk-Mounted, Wall-Mounted
  • Max. Power Consumption : 120 W
  • Power Consumption in Idle : 10 W
  • Surge Protection : 6 kV

Network Parameters

  • Ports : 8 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port
  • MAC Address Table : 8 K
  • Packet Forwarding Rate : Whole-Device Performance: 4.17 Mpps, Port Performance: 2.68 Mpps
  • Internal Cache : 4 Mbits
  • Switching Capacity : Whole-Device Performance: 5.6 Gbps, Port Performance: 3.6 Gbps

PoE Power Supply

  • PoE Standard : IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin : End-span: 1/2(-), 3/6(+)
  • PoE Port : Ports 1 to 8
  • Max. Port Power : 30 W
  • PoE Power Budget : 110 W

Software Function

  • Long Range : Ports 1 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition.
  • Port Isolation : Ports 1 to 8: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog : Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Loop Prevention : Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
  • VLAN : VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.

HPP

  • Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
  • Display the port rate.
  • Display the port bandwidth utilization rate.
  • Display the PoE power usage.
  • Display topology information.
  • Display the alarm status.
  • Restart ports and devices.
  • Enable port long-range mode.
  • Remotely upgrade the device.

System Maintenance

  • Support device management via web.
  • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
  • Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
  • Support management via Hik-Central Pro.
  • Support remote management via Hik-Partner Pro.
  • Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
  • Supports 802.1ab LLDP for peer device discovery.
  • Support port mirroring for fault locating.

Approval

  • EMC : CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
  • Safety : CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry : CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
