Hochiki CHQ-AB ESP Addressable Beacon
£28.23
Key features
- High Intensity LED technology
- Choice of Red, Amber or Blue lens colour
- Approved by VdS
Downloads
Summary
The CHQ-AB is an addressable loop-powered Beacon, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash.
View full overview Show less
The casing exactly matches the Hochiki ESP Sensor range in shape and colour providing seamless integration.
The unit can be used on the Standard ESP Base (YBN-R/3), the Base Sounder (YBO-BS), the Base Sounder Beacon (YBO-BSB) or the Short-Circuit Isolator Base (YBO-R/SCI).
Available Models
The Hochiki CHQ-AB addressable beacon is available in the following models;

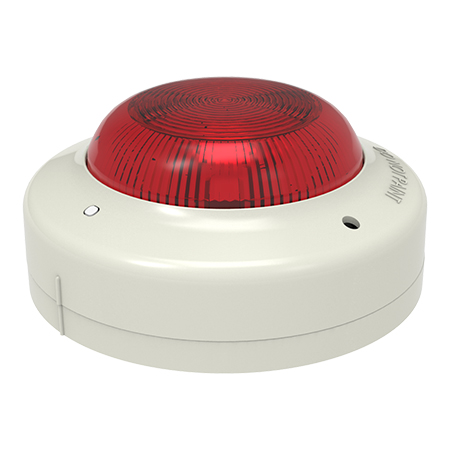

- CHQ-AB – Red lens, Ivory case

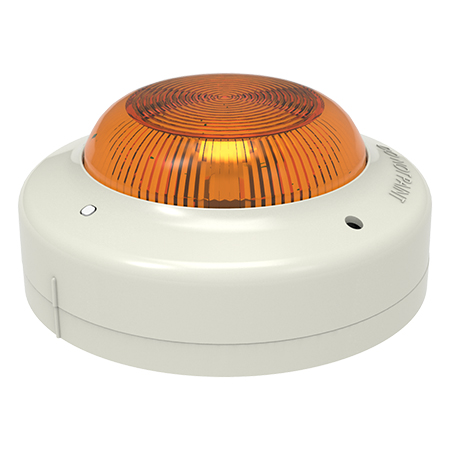

- CHQ-AB(AMB) – Amber lens, Ivory case
- CHQ-AB(AMB)WHT – Amber lens, White case

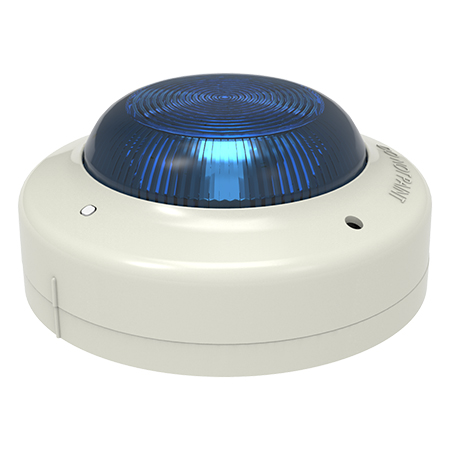

- CHQ-AB(BLU) – Blue lens, Ivory case

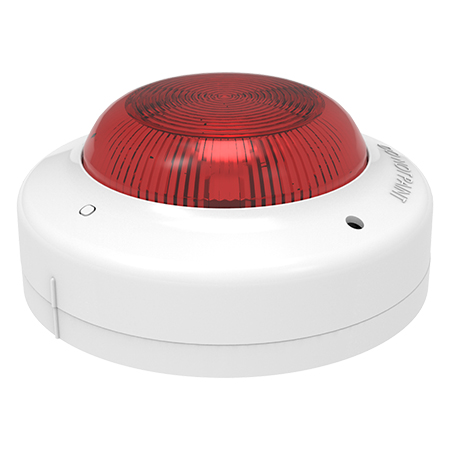

- CHQ-AB(WHT) – Red lens, White case
Key Features
- High Intensity LED technology
- Variable flash frequency (dependant on control panel compatibility)
- Addressable via Hand Held Programmer (TCH-B100)
- Up to 127 devices per loop
- Choice of Red, Amber or Blue lens colour
- Approved by VdS
Specifications
- Ordering Code :
- CHQ-AB – Red lens, Ivory case
- CHQ-AB(AMB) – Amber lens, Ivory case
- CHQ-AB(AMB)WHT – Amber lens, White case
- CHQ-AB(BLU) – Blue lens, Ivory case
- CHQ-AB(WHT) – Red lens, White case
- Operating Voltage : 17 – 41 V d.c.
- Quiescent Current (typ) : 240µA (300µA max)
- Loop current (when polled) : 22mA ±20%
- Alarm Current (typ) : 4.3mA (5.0mA max)
- Operating Temperature Range : -10 °C to + 50 °C
- Storage Temperature Range : -30 °C to +60 °C
- Maximum Humidity : 95% RH – Non Condensing (at 40 °C)
- Colour / Case Material : Ivory or White / ABS
- Weight (g) : 88
- Diameter (mm) / Height (mm) : 100 / 38 (46 with base)
- Base Fixing Centres (mm) : 48 ~ 74
- Approvals : VdS (G206052)
