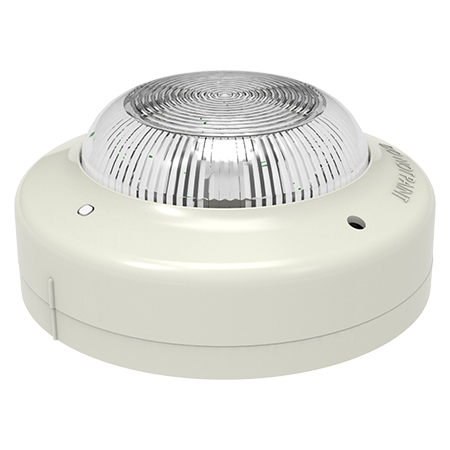

Hochiki CHQ-ARI Addressable Remote Indicator
£28.23
Key features
- Addressable remote LED indicator for Hochiki ESP range
- High Intensity LED technology
- Addressable via Hand Held Programmer (TCH-B100)
Downloads
Summary
The CHQ-ARI is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design which produces a highly visible signal.
View full overview Show less
The casing exactly matches the Hochiki ESP Sensor range in shape and colour providing seamless integration.
The unit can be used on the Standard ESP Base (YBN-R/3), the Base Sounder (YBO-BS), the Base Sounder Beacon (YBO-BSB) or the Short-Circuit Isolator Base (YBO-R/SCI).
Available Models
The Hochiki CHQ-ARI addressable remtoe LED indicator is available in the following models;
- CHQ-ARI – Clear lens, Ivory case
- CHQ-ARI(WHT) – Clear lens, White case
Key Features
- High Intensity LED technology
- Addressable via Hand Held Programmer (TCH-B100)
- Up to 127 devices per loop
- Approved by VdS
Specifications
- Ordering Code :
- CHQ-ARI – Clear lens, Ivory case
- CHQ-ARI(WHT) – Clear lens, White case
- Operating Voltage : 17 – 41 V d.c.
- Quiescent Current (typ) : 280µA (300µA max)
- Loop current (when polled) : 22mA ±20%
- Alarm Current (typ) : 4.5mA (5.4mA max)
- Operating Temperature Range : -10 °C to + 50 °C
- Storage Temperature Range : -30 °C to +60 °C
- Maximum Humidity : 95% RH – Non Condensing (at 40 °C)
- Colour / Case Material : Ivory or White / ABS
- Lens Colour : Transparent (Clear)
- Weight (g) / Diameter (mm) / Height (mm) : 88 / 100 / 38 (46 with base)
- Base Fixing Centres (mm) : 48 ~ 74
- Approvals : VdS (G206053)
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.1 kg |
|---|---|
| Case-colour | |
| Device Type | |
| Environment | |
| Protocol | |
| System Type |
