Hochiki ESP Call Point PCB
£23.33 (inc VAT: £28.00)
Summary

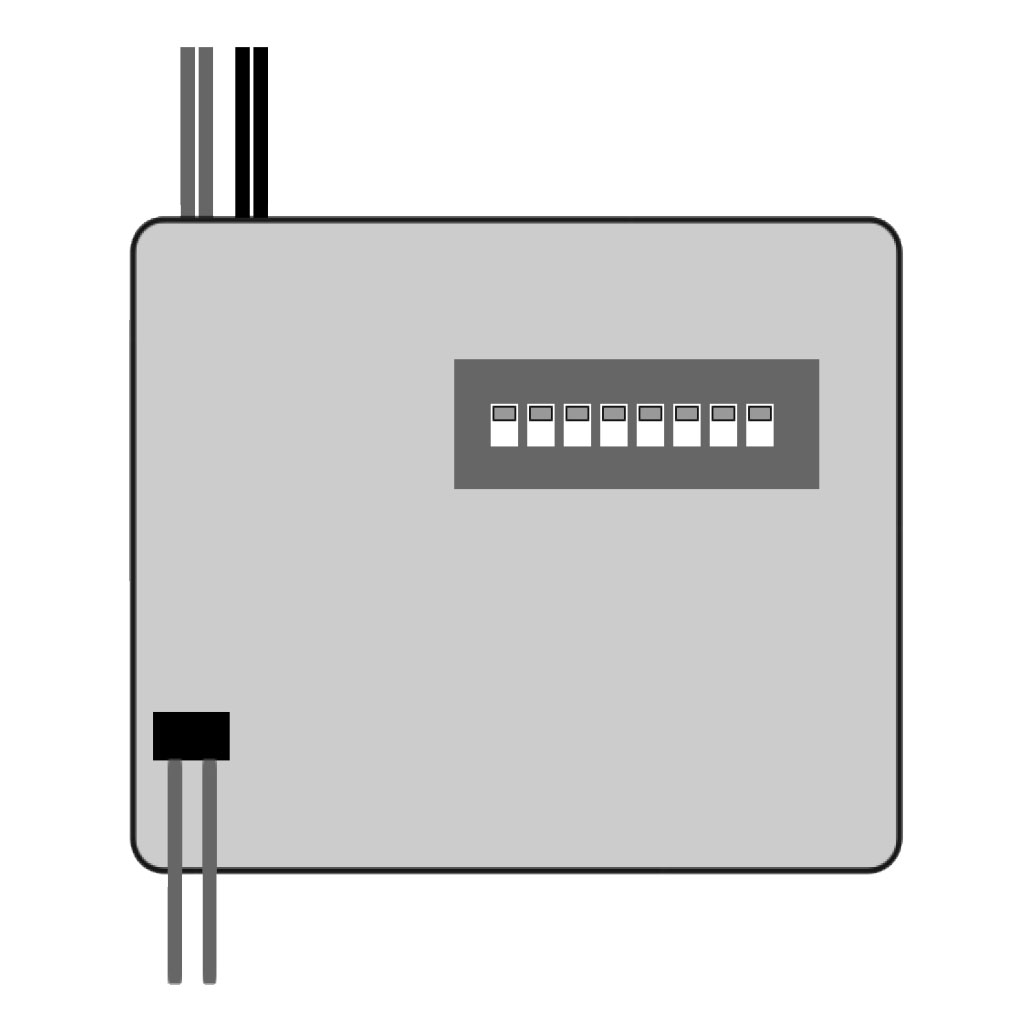

The CHQ-CP2 is a loop powered single input monitor unit designed for use as a call point module in special applications such as addressable key-switches and explosion-proof call points. It is configured by default as a call point by the Fire Alarm Control Panel. The unit comprises a single PCB with several flying leads, which should be connected according to the provided wiring diagram. For field usage, it must be mounted in an appropriate box to comply with the European “CE” directive. An optional red LED can be installed to flash when the unit is polled by the control panel and remain continuously illuminated when the input is activated and latched until reset.
Features
- Single un-monitored input
- Non-polarised loop connections
- Sleep mode for low power consumption
- Monitor LED flashes when unit is polled and continuously illuminates in alarm
Specifications
- Supply Voltage : Loop voltage (low) 17 – 31 V
- Current Consumption (loop) : Quiescent 230 μA (typ)
- Sleep Mode, 0.75s Polling : 38 μA (typ)
- Loop Current (when polled) : 22 mA±20%
- Loop Current (alarm) – LED on : 5 mA
- ON Threshold Level : < 50 Ω
- OFF Threshold Level : > 100 kΩ
- Operating Temperature Range : -10°C – +50°C
- Storage Temperature Range : -30°C – +60°C (<80% RH at 60°C)
- Relative Humidity : 95% RH at 40°C non-condensing *
- Dimensions : 44.5 mm x 36.5 mm
- Weight : 15 g (not including casing)
