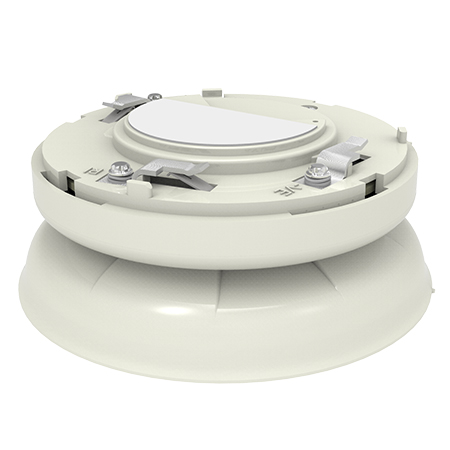

Hochiki YBO-BS Addressable Base Sounder (Ivory or White)
£23.42
You may also need
Key features
- Loop Powered with Single Loop Address
- Variable Sound Output 50 ~ 98 dB(A) (+/-2 dB(A)) output at 1 metre
- 51 User-Selectable Tones (all tones EN54-3 compatible)
Downloads
Summary
Model YBO-BS is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Base (YBO-R/SCI – from Batch Number 6044) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.
View full overview Show less
The unit can also be converted into a wall sounder with the simple addition of a Cap (SI/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only.
An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).
Key Features
- Loop Powered with Single Loop Address – addressed automatically by Control Panel or via the TCH-B100 Hand Held Programmer
- Variable Sound Output 50 ~ 98 dB(A) (+/-2 dB(A)) output at 1 metre
- Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
- 51 User-Selectable Tones (all tones EN54-3 compatible)
- Auto-Shutdown feature prevents noise-pollution
- Approved by LPCB & VdS
- Available in Ivory or White
Specifications
- Ordering Code : YBO-BS YBO-BS(WHT)
- Operating Voltage : 17 – 41 V dc
- Low Power Mode (typ) : 40 ïÂA
- Quiescent Current (typ) : 150 ïÂA
- Sounding Current (typ) : 0.8 mA (50 dB(A) @ 1 m) ~ 16 mA (98 dB(A) @ 1 m)
- Sound Output (at 1 metre) : 50 ~ 98 dB(A) (±2 dB(A)) @ 24 VDC or above (EN54-3 compliant)
- Number of Tones : 51
- Tone Frequency Range : 300 Hz ~ 2850 Hz
- Operating Temperature Range : -10°C to +50°C
- Storage Temperature Range : -30°C to +70°C
- Maximum Humidity : 95%RH – Non Condensing (at 40°C)
- Colour / Case Material : Ivory or white / PC+PS+GF5
- Ingress Protection Rating : IP21
- Weight (g) : 112
- Dimensions (mm) : H113 x W113 x D43
- Base Fixing Centres (mm) : 48 ~ 74
