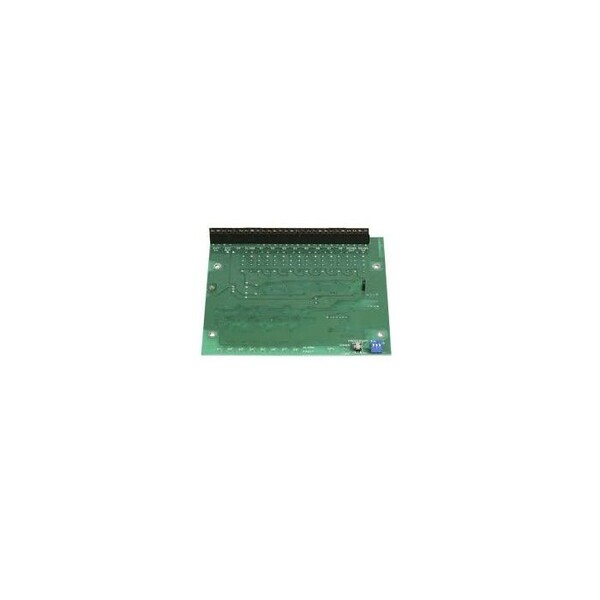

Kentec Sigma CP Sounder PCB
£131.01 (inc VAT: £157.21)
Key features
- Two wire serial connections.
- Up to 7 sounder boards per system.
- 230V AC or 24V DC powered versions.
- Zoned, 2-stage or common alarm
- All outputs monitored for open and short circuit faults
- Individual open and short circuit fault indicators
- Fully monitored by main control panel
- Class change input facility
- Up to 8 outputs with 0.5A available from each
- Can be connected to serial bus with Ancillary boards and repeaters
- Boxed units in enclosure to match Sigma CP control panels
- Power fault input for monitoring remote power supplies
Downloads
Summary
The Sigma CP Sounder Board is compatible with all Sigma CP control panels which have operating software version V3.0 or above. The board provides 8 additional sounder outputs which can be configured as zoned, 2-stage or common alarm. All sounder outputs are open and short circuit monitored and any faults on the sounder outputs will be announced at the main fire alarm panel as a sounder fault.
Features
- Two wire serial connections.
- Up to 7 sounder boards per system.
- 230V AC or 24V DC powered versions.
- Zoned, 2-stage or common alarm
- All outputs monitored for open and short circuit faults
- Individual open and short circuit fault indicators
- Fully monitored by main control panel
- Class change input facility
- Up to 8 outputs with 0.5A available from each
- Can be connected to serial bus with Ancillary boards and repeaters
- Boxed units in enclosure to match Sigma CP control panels
- Power fault input for monitoring remote power supplies
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|
