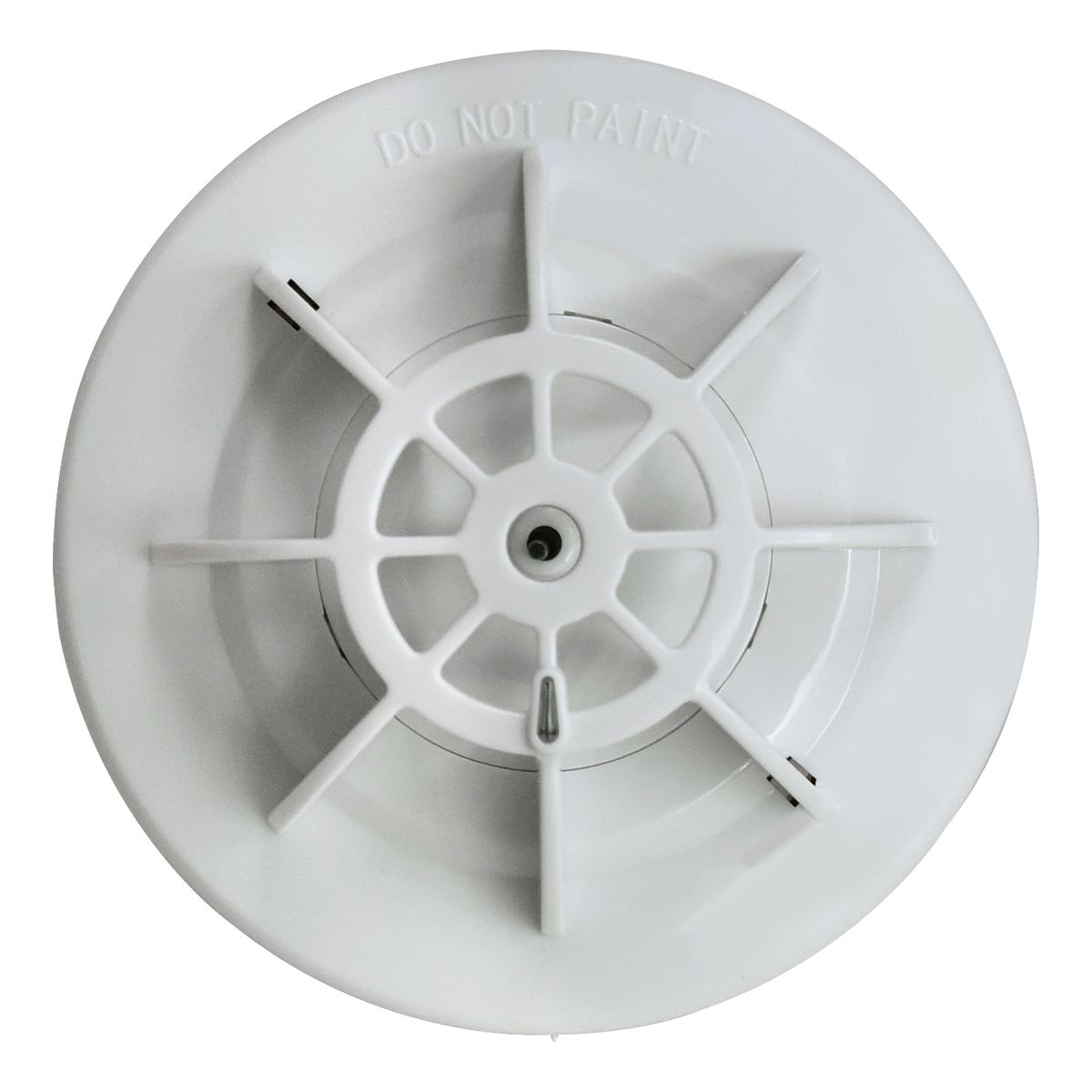

Kidde Commercial Conventional Heat Detector
£10.72 (inc VAT: £12.86)
Summary
The NC-DPH-W is a conventional heat detector designed for reliable fire detection in indoor environments. This device features self-diagnostic capabilities and local test activation via a reed switch, ensuring optimal functionality and ease of maintenance. With a 360° viewing angle for its LED indicator, the NC-DPH-W allows for quick visual confirmation of its operational status, minimizing the time spent on specific detector orientation.
Equipped with configurable polling LED support and a remote indicator output, this heat detector is versatile and adaptable to various installation requirements. It offers three programmable operating levels (A1R, A2S, and BS), making it suitable for a range of applications and environments.
Features
- Local test activation with reed switch
- Configurable polling LED support
- Remote indicator output for easy monitoring
- Programmable sensitivity levels for tailored detection
- Zone connection with 2-core (polarity sensitive)
Specifications
- Compatible Products : GST100A Series Conventional CIEs, GST I-9319 Zone Monitor
- Status Indication : Red LED
- User Interface : Via LED – Polling, Fault, Contamination, and Alarm
- Reset Voltage : < 1 VDC
- Reset Time : < 10 s
- Alarm Levels : 3
- Operating Voltage : 9.5 To 28 VDC (24 VDC Typical)
- Current Consumption : < 60 μA (Quiescent), ≤55 mA (Alarm)
- Cable Specification : >1.0 mm²
- No. Of Cable Cores : 2
- Terminals : 4
- Detection Principle : Heat
- Sensitivity : Programmable
- Zone Length : Panel Dependent
- Remote Alarm Output : 1
- Physical Dimensions : 54.5 mm (Including Base) x 100 mm Ø
- Net Weight : ±110 g
- Colour : White (RAL 9016)
- Mounting Type : Ceiling Mount
- Material (Body) : ABS
- Operating Temperature : -10 To +65°C
- Relative Humidity : 0 To 95% Non-Condensing
- Environment : Indoor
- IP Rating : IP2x
- Compliancy : CE, WEEE
- Certification : EN54-5
- Standards : LPCB
