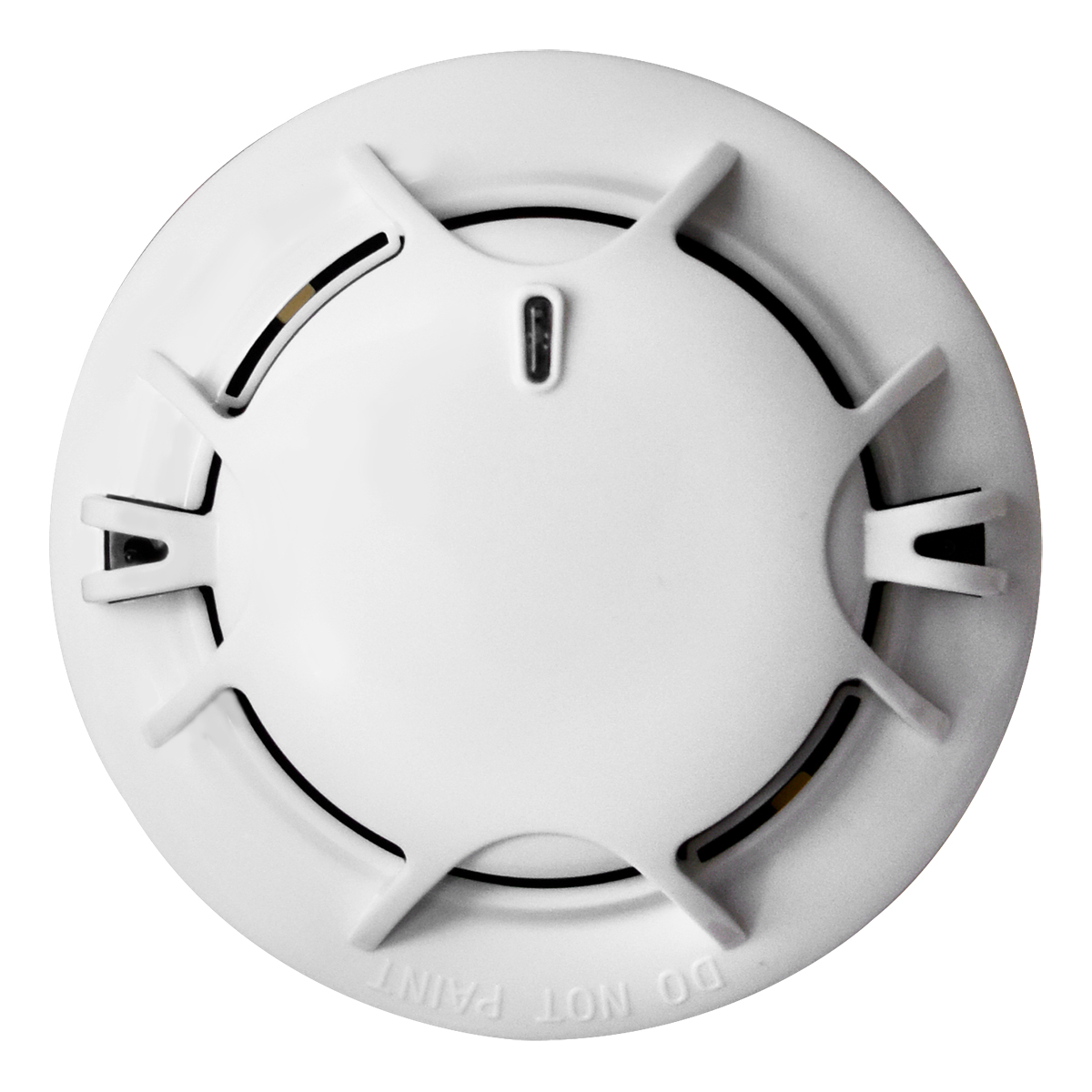

Kidde Commercial Conventional Multisensor Detector
Summary
The NC-DPM-W is a state-of-the-art conventional multisensor fire detector that integrates photoelectric (optical) detection with fixed temperature and rate-of-rise detection technology. This combination allows the detector to effectively identify a wide range of fire types, including those that produce black smoke and small particles from burning materials such as alcohol. Designed for versatility, the NC-DPM-W is suitable for various applications and environments.
Installation is straightforward, as the detector can be mounted on the GST DB-01 conventional detector base for standard applications or the GST DB-01D diode base for head-out functionality compliant with BS5839 standards. Programmable detection sensitivities can be adjusted using the GST P-9910B device programmer, ensuring optimal performance in diverse conditions.
Features
- Drift compensation for improved environmental adaptability
- Self-diagnostic capabilities for reliable operation
- Local test activation using a reed switch
- Chamber contamination checking for maintenance
- Configurable polling LED support for customisable alerts
- Remote indicator output for external monitoring
- Two programmable smoke sensitivity levels for tailored detection
Specifications
- Compatible Products : NC-DB-W, NC-DB2R-W, NC-DBD-W, NC-DBR-W
- Status Indication : Red LED
- User Interface : Via LED – polling, fault, contamination and alarm
- Reset Voltage : <1 VDC
- Reset Time : <10 s
- Alarm Levels : 2
- Operating Voltage : 9.5 to 28 VDC (24 VDC typical)
- Current Consumption : <60 μA (Quiescent), ≤55 mA (Alarm)
- Cable Specification : >1.0 mm²
- No. of Cable Cores : 2
- Terminals : 4
- Detection Principle : Optical & Heat
- Sensitivity : Programmable
- Heat Class : A2R
- Activation Temperature : 62°C
- Remote Alarm Output : 1
- Physical Dimensions : 54.5 mm (including base) x 100 mm Ø
- Net Weight : ±110 g
- Colour : White (RAL 9016)
- Mounting Type : Ceiling mount
- Material (Body) : ABS
- Operating Temperature : -10 to +50°C
- Relative Humidity : 0 to 95% noncondensing
- Environment : Indoor
- IP Rating : IP2x
- Compliancy : CE, WEEE
- Certification : EN54-5, EN54-7
- Standards : LPCB
