MAXHUB Intel-i7 Windows PC Module
£1,090.00 (inc VAT: £1,308.00)
You may also need
Key features
- 12th Gen Intel Core i7
- Supports 4K@60Hz
- 16GB DDR4 RAM
Downloads
Summary

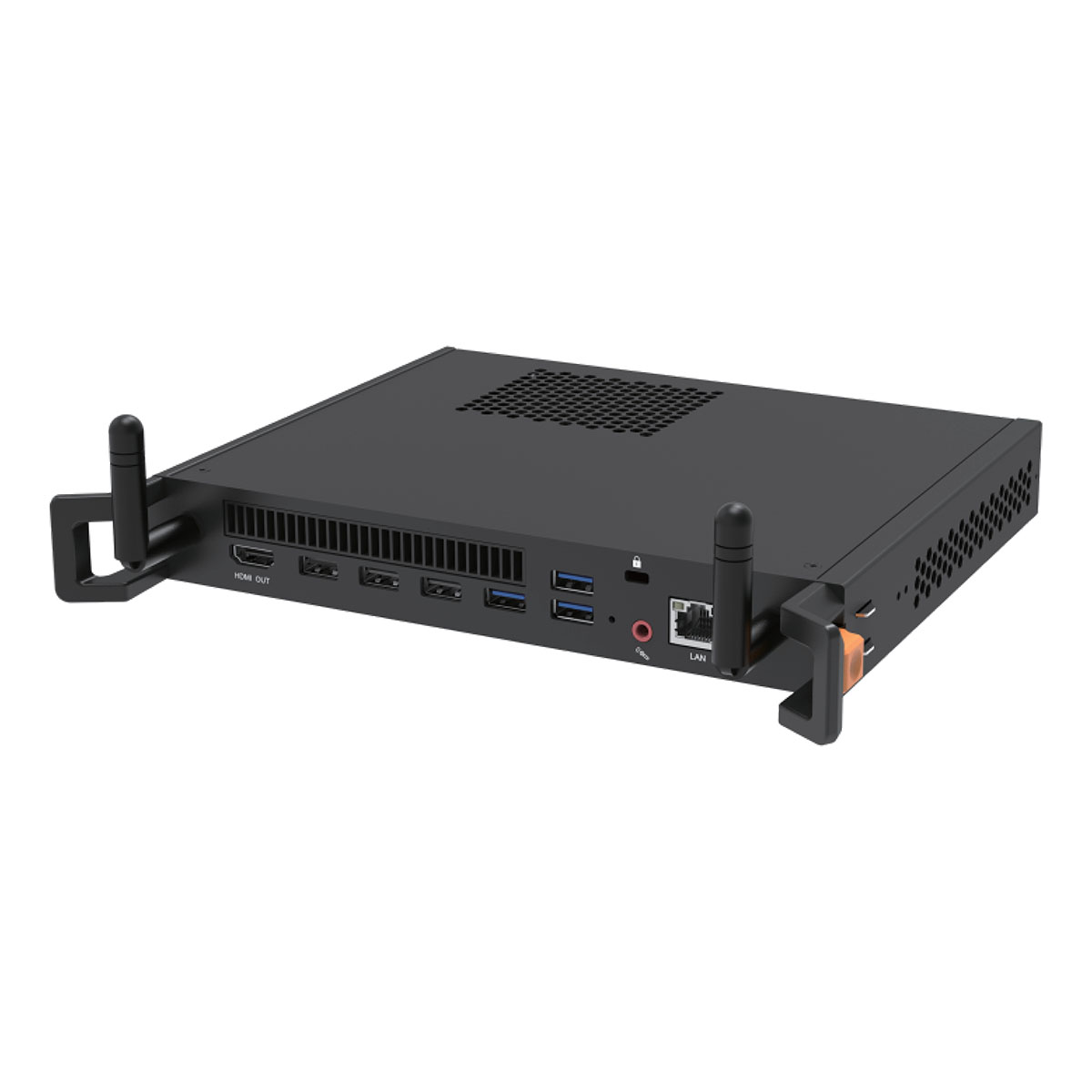

The MAXHUB MT71P is a modular PC designed to seamlessly integrate with MAXHUB Interactive Flat Panels. It features the powerful 12th Generation Intel® Core™ i7 Processor and comes pre-installed with the MAXHUB OS, which is based on the Windows operating system. This pluggable PC module offers high performance and versatility, making it an ideal solution for enhancing interactive displays.
Features
- Pluggable PC module design
- Pre-installed MAXHUB OS
- Compatible with touchscreen displays
- Includes Kensington security slot
- Multiple USB and HDMI ports
Specifications
- Device Type : Pluggable PC Module
- Operating System : Win 10 IOT (64bit)
- CPU : 12th Generation Intel® Core™ i7 Processor -12650H
- GPU : Intel UHD Graphics (supports 4K@60Hz)
- RAM : 16G, DDR4
- Internal Storage : 512G
- Power Requirements : 18V DC
- Power Consumption Maximum : ≤ 110W
- Power Consumption Standby : ≤ 2.3W
- Operating Temperature : -10°~55°C
- Storage Temperature : -20°~60°C
- Operating Humidity : 10% – 90%RH
- Storage Humidity : 10% – 90%RH
- Product Dimensions (W×H×D) : 244.5 × 207.2 × 32 mm / 9.67 × 8.16 × 1.26 inch
- Package Dimensions (W×H×D) : 314 × 256 × 70 mm / 12.36 × 10.08 × 2.76 inch
- Net Weight : 1.2 kg / 2.65 lbs
- Gross Weight : 1.79 kg / 3.95 lbs
- HDMI Out (2.0) : 1 (up to 4K@30fps)
- USB 3.0 Type-A : 3
- USB 2.0 Type-A : 3
- RJ45 (Ethernet, 1000M) : 1
- Microphone in : 1
- Kensington Slot : 1
- Standard Warranty : 3-year Warranty
Downloads
- Datasheet (Adobe PDF)
