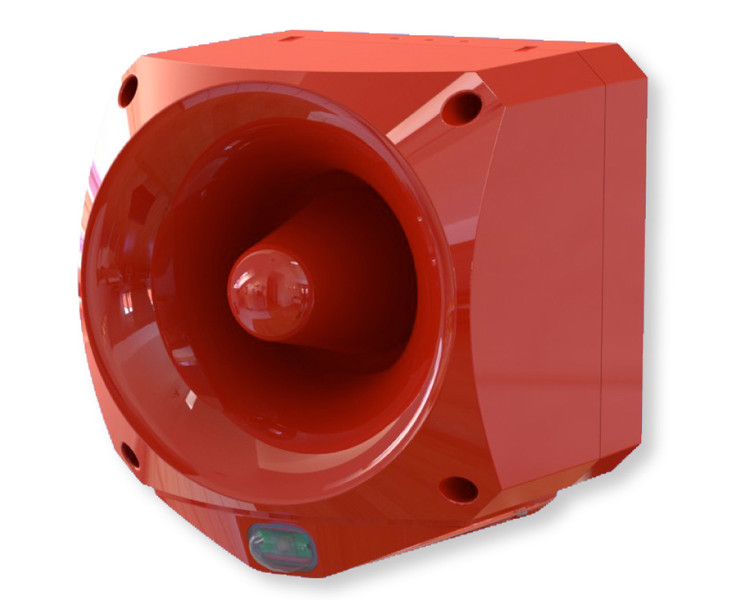

Nexus Pulse EN Certified High Output Sounder & VAD Beacon
Summary
Nexus Pulse wall mounted visual alarm devices are available as combined sounder beacons.
- White flash: EN54-23 coverage W-3.1-11.3
- Red flash: EN54-23 coverage W-2.7-7.64
Benefits
| Feature | Benefits |
|---|---|
| Conforms to EN54-23 | Exceeds the illumination requirements of EN54-23 |
| Pulse Alert Technology | Patented electronic design maximises system efficiency by minimising power consumption |
| Up to 11.3m Coverage volume | Reduces the number of devices required most rooms can be protected with a single device |
| Wire to Base Technology | Installation is quick and simple with mounting and wiring made only to the base the head clicks on to the base during commissioning |
| Simple Upgrade | Nexus Pulse VADs share the same base mounting and wiring as previous versions, making the transition to Pulse versions as simple as possible |
| Optimum Performance Level | Pulse Alert Technology enables the coverage pattern to be fixed at the optimum performance level |
| Synchronised Flash | Sonos Pulse VADs protect everyone including people prone to photosensitive epilepsy |
| No Surge Current | Eliminates power surges during system start up |
| Weatherproof to IP66 | Surpasses the Ingress Protection requirements of EN54-23 making them suitable for a wide variety of environmental conditions |
Key Features
- 105dB or 110dB output depending upon model
- Conforms to EN54-23
- Pulse Alert Technology
- Body Colur: Red
- Flash Colour: White & Red
- Wire to Base Technology
- Simple Upgrade
- Synchronised Flash
- No Surge Current
- Weatherproof to IP66
Specifications
- Body Colour : White or Red
- Flash Colour : White or Red
- Voltage : 17-60 VDC
- Current @ 0.5Hz : 50mA
- 105dB Version : 50mA
- 110dB Version : 65mA
- Current @ 1Hz :
- 105dB Version : 70mA
- 110dB Version : 85mA
- IP Rating : IP66
- Rating : Continuous
- Operating Temperature : -25ºC to +70ºC
- Cable Entries : 5
- Weight (kg) :
- 105db Version : 0.8kg
- 110dB Version : 1.2kg
