Nittan Evolution EV-SDR Addressable Sounder or Sounder Base
Key features
- Available as standalone sounder or sounder base
- 12 tones DIP switch selected (3 approved tones)
- Replaces EV-ABS sounder
Downloads
Summary
The EV-SDR is a low profile Sounder device suitable for both Ceiling or Wall mounting applications. The device has 12 tone options (3 Approved), which are easily selectable via DIP switch settings.
View full overview Show less

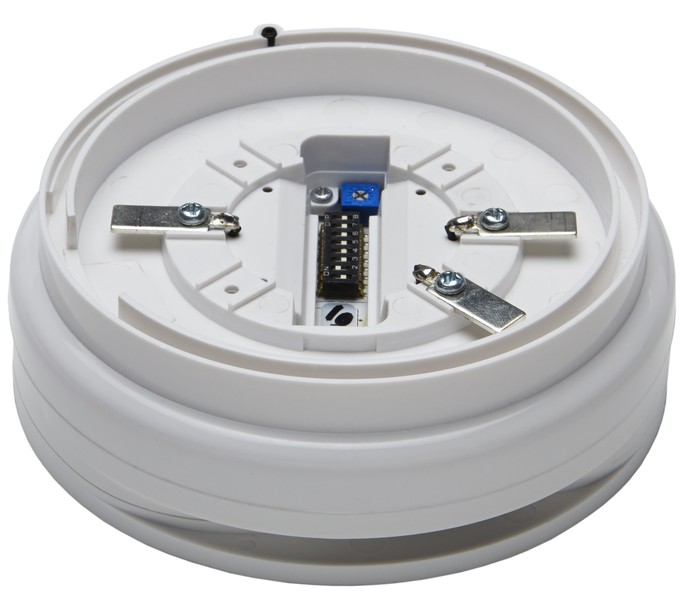

The EV-SDR can also be ordered as Base Sounder (EV-SDR-BASE) suitable for use with all types of Evolution analogue addressable detectors. The EV-SDR Base can be set to “Activate with Detector”, in the Panel configuration, without any special device setting.
Features
- Available as standalone sounder or sounder base
- Evolution FSK protocol
- EEPROM addressed (programmer)
- 12 tones DIP switch selected (3 approved tones)
- Replaces EV-ABS sounder
Specifications
- Part Number :
- EV-SDR : Standalone Sounder
- EV-SDR-BASE : Sounder Base
- Sounder Device : Piezo
- Sounder Output : 73 to 88 dB(A) @ 90°/1 metre
- Sounder Tones : 12 Tones DIP Switch select (3 Approved)
- Operating Voltage : 24V d.c. to 38V DC
- System Voltage : 35V DC
- Quiescent Current : 200µA
- Sounder Operating Current : 4mA (Low) 6mA (High)
- Operating Temperature : -10°C to + 55°C
- Storage Temperature : -25°C to + 70°C
- Relative Humidity : RH95% non-condensing.
- I.P. Protection Rating : IP21C
- Addressing Method : Soft addressing, Non-Volatile EEPROM.
- Material : ABS
- Dimensions :
- EV-SDR (Standalone Sounder) : 115mm x 30.91mm
- EV-SDR-BASE (Sounder Base) : 115mm x 37.6mm
- Weight : 200g
- EMC Conformance : EMC conformance to BSEN50130-4
- CE Conformity : Yes
- CPD Number : 0359-CPR-00457
- Standards / Certification : EN54-3: 2001 + A1: 2002 + A2: 2006
- DoP Number : 00457
