Rutland TS.3204 Combined Door Closer with Flat Bar Armset
Summary
The TS.3204 Scissor Arm Door Closer is a Certifire approved solution ideal for mid-range contracts. It is designed with a power size of 3/4, adjustable by template, and offers an optional back check feature. This door closer is suitable for a variety of applications, providing reliable performance and ease of installation.

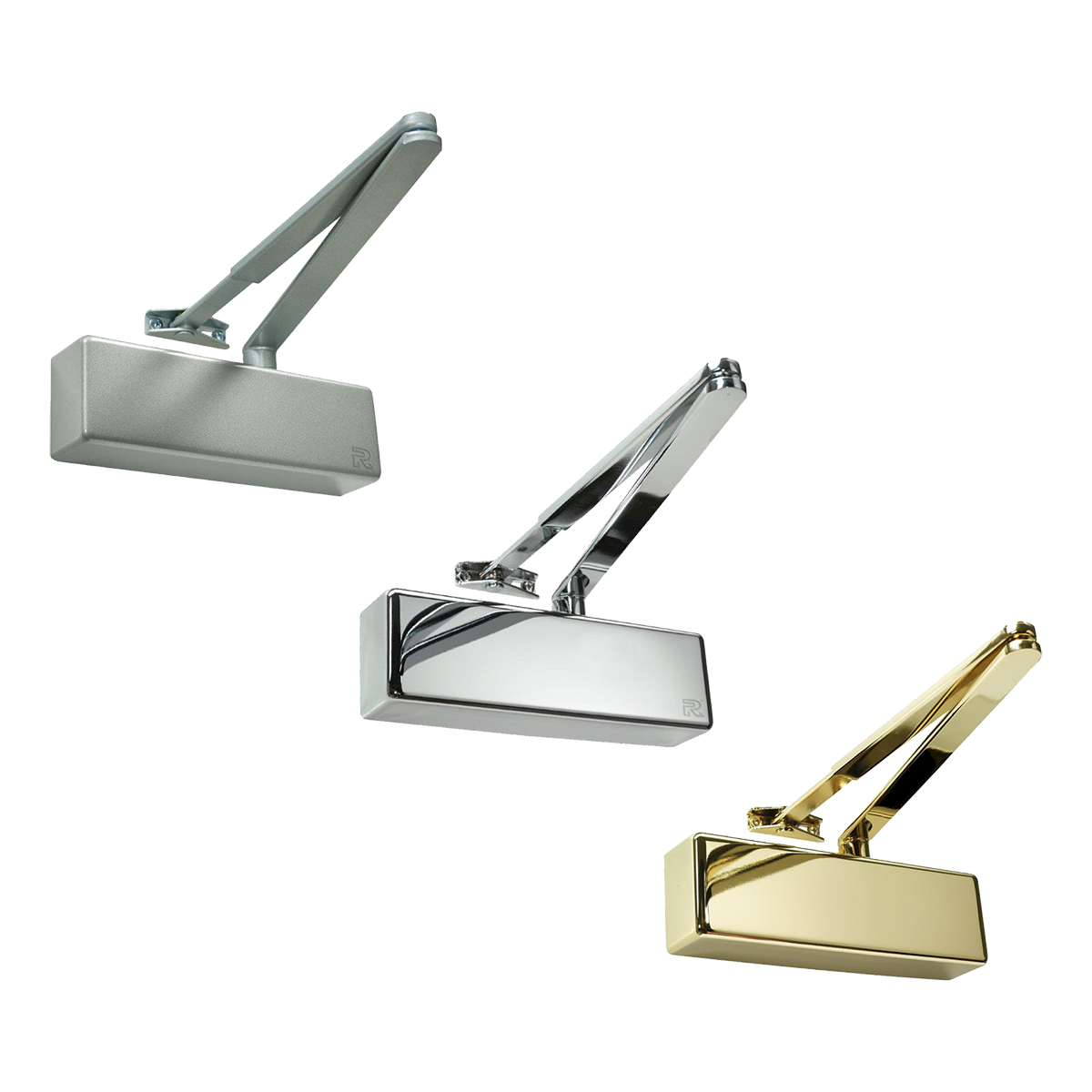

Available in multiple finishes including Silver, Satin Nickel, Polished Nickel, and Polished Brass, the TS.3204 combines functionality with aesthetic versatility. It is designed for internal use with a corrosion grade of 3 and is fire tested to meet standards from FD30 to FD120, ensuring safety and durability.
Features
- Available in multiple finishes
- Easy to read instructions
- Corrosion grade 3 for internal use
- Fire tested FD30 to FD120
- 180º opening angle
Specifications
- Max Door Weight : 80kg
- Max Door Width : 1,100mm
- Opening Angle : 180º
- Dimensions : W250 x H66 x D43mm
- Certification : Certifire, UKCA, CE, BS EN 1154
- Finishes Available : Silver, Satin Nickel, Polished Nickel, Polished Brass
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Finish | Silver, Satin Nickel, Polished Nickel, Polished Brass, Satin Brass, White |
| Device Type | |
| Mounting | Door |
