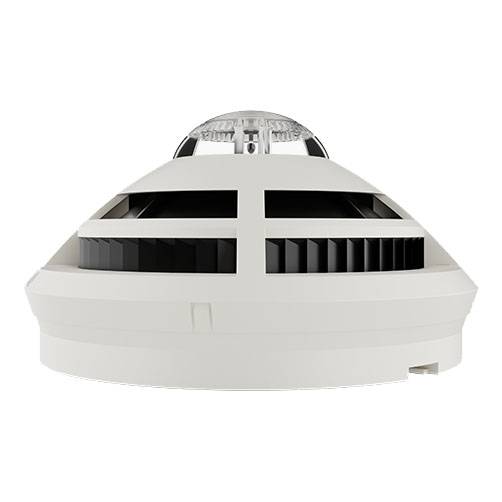

SMS SenTRI Addressable Optical Heat Detector
£53.38 (inc VAT: £64.06)
Summary
The SenTRI Addressable Optical Heat Detector represents a significant advancement in fire detection technology, combining both optical and heat sensing capabilities in a single, sophisticated unit. This innovative detector is specifically engineered for seamless integration with SMS Fire Alarm Control Panels, providing accurate fire detection while continuously monitoring smoke levels within its sensing chamber.
Designed to excel in diverse environments, this dual-detection system offers exceptional reliability and performance. The detector features intelligent adjustable sensitivity settings that can be precisely tailored to specific applications and environmental conditions. These settings can be programmed to automatically vary between day and night operations, ensuring optimal detection performance around the clock while minimizing false alarms.
With its LPCB approval and robust ABS enclosure, the SenTRI detector meets the highest industry standards for fire safety equipment, making it an ideal choice for commercial, industrial, and institutional applications where reliable fire detection is critical.
Features
- Combined optical and heat sensor technology for dual detection method
- Seamless integration with SMS Fire Alarm Control Panels
- Continuous smoke level monitoring within sensing chamber
- Adjustable sensitivity settings for application-specific customization
- Day and night sensitivity programming capabilities
- LPCB approved for professional applications
- High performance fire detection accuracy
- Robust ABS enclosure construction
- IP30 protection rating (IP20 when mounted on metal back box)
- Wide operating temperature range from -10°C to +50°C
- Compact design with 117 x 49.6mm dimensions
- Lightweight construction at only 110g (170g with base)
FAQs
What makes the SenTRI detector different from standard smoke detectors?
The SenTRI combines both optical and heat detection technologies in a single unit, providing dual detection methods for increased reliability and accuracy. It also continuously monitors smoke levels and offers adjustable sensitivity settings that can be programmed for different times of day.
Which fire alarm control panels is this detector compatible with?
The SenTRI Addressable Optical Heat Detector is specifically designed for seamless integration with SMS Fire Alarm Control Panels, ensuring optimal performance and communication.
Can the sensitivity settings be adjusted after installation?
Yes, the detector features adjustable sensitivity settings that can be tailored to specific applications. These settings can also be programmed to automatically vary between day and night operations for optimal performance.
What approval certifications does this detector have?
The SenTRI detector is LPCB (Loss Prevention Certification Board) approved, meeting the highest industry standards for fire detection equipment.
What is the operating temperature range for this detector?
The detector operates reliably in ambient temperatures from -10°C to +50°C, with storage capabilities from -20°C to +70°C, making it suitable for a wide range of environmental conditions.
What protection rating does the detector have?
The detector has an IP30 protection rating, or IP20 when mounted on a metal back box, providing adequate protection against dust and debris in typical indoor environments.
Specifications
- Part Number : SEN-710
- Operating Voltage : 35V – 41V
- IP Rating : IP30 (IP20 when mounted on metal back box)
- Approval : LPCB approved
- Storage Temperature : -20°C to +70°C
- Ambient Operating Temperature : -10°C to +50°C
- Relative Humidity : 95% non condensing (+5°C to +45°C)
- Enclosure : ABS
- Colour : RAL 9010
- Weight : 110g (170g with base)
- Dimensions (W X H) : 117 x 49.6mm
- Detection Technology : Combined optical and heat sensor
- Sensitivity Settings : Adjustable with day/night programming
Downloads
- Brochure (Adobe PDF)
Additional information
| Weight | 0.11 kg |
|---|---|
| Device Type | |
| Detection Type | |
| Environment | |
| Protocol | |
| System Type | |
| Colour |
