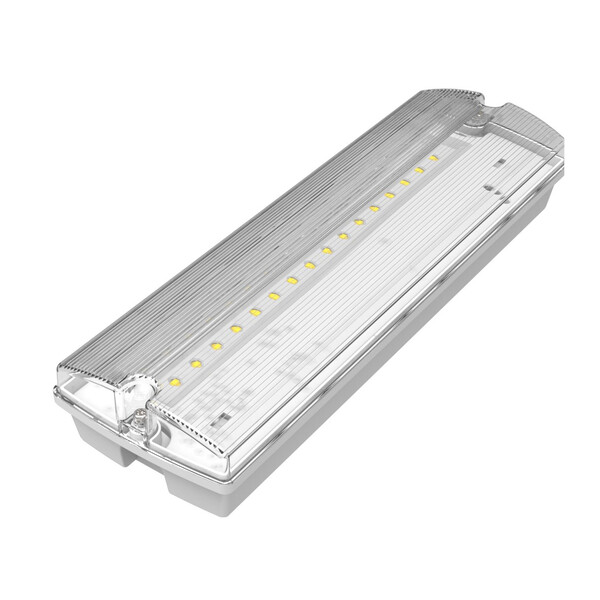

Solent Economy LED Emergency Bulkhead
Obsolete
Summary
The Solent LED emergency luminaire from Channel Safety Systems represents a versatile and robust emergency lighting solution designed to meet the demanding requirements of both internal and external applications. With its IP65 weatherproof rating, this innovative bulkhead luminaire delivers reliable high light output emergency illumination whilst maintaining the sleek, minimalistic design aesthetics expected in modern commercial environments.
Engineered with long-life LED technology and advanced LiFePO4 battery systems, the Solent provides exceptional performance and sustainability. The luminaire offers both maintained and non-maintained operation modes, making it suitable for a wide range of applications from commercial buildings and industrial facilities to external walkways and covered areas where weather protection is essential.
The Solent’s thoughtful design includes an optically enhanced diffuser for superior light distribution, hinged screwless gear tray for easy maintenance access, and polycarbonate construction for durability. With its lightweight design and flexible mounting options, the Solent simplifies installation whilst meeting BS EN60598-1:2008 standards. The included pictogram pack and optional semi-recessing kit provide additional customisation options to suit specific installation requirements and aesthetic preferences.
Features
- Long life LED technology for reduced maintenance requirements
- Maintained and non-maintained operation modes
- Versatile ceiling or wall mounting capabilities
- Comprehensive pictogram pack included
- Sleek and minimalistic design profile
- Optically enhanced diffuser for superior light distribution
- Robust polycarbonate construction
- Lightweight design for easy installation
- Advanced lithium LiFePO4 battery technology
- Optional semi-recessing kit available for flush mounting
- Low environmental impact and reduced running costs
- IP65 weatherproof rating for internal and external use
- 150 lm emergency output for effective illumination
- Hinged screwless gear tray for maintenance access
- Flexible conduit entry options (16mm or 20mm)
- 3 hour minimum emergency duration
- Integral green LED charge indicator
- Red LED fault indicator for system monitoring
- Less than 24 hour recharge period
- 6000K colour temperature for clear white light
- Low quiescent current consumption (35mA)
- Maximum 50mA mains current consumption
- 3.2V 1500mAH LiFePO4 battery capacity
- Meets BS EN60598-1:2008 and other relevant standards
- Suitable for high-traffic commercial applications
FAQ
What is the difference between maintained and non-maintained operation?
Maintained operation means the emergency light operates continuously during normal power supply, whilst non-maintained operation means it only activates during mains power failure. The Solent can be configured for either mode to suit your specific application requirements.
Can the Solent be used outdoors?
Yes, the Solent has an IP65 weatherproof rating making it suitable for both internal and external environments. It provides protection against dust ingress and water jets, making it ideal for covered external areas, car parks, and industrial environments.
What is included with the Solent luminaire?
Each Solent unit comes complete with a comprehensive pictogram pack, allowing you to customise the emergency signage to suit your specific escape route requirements and building layout.
How long does the emergency battery last?
The advanced LiFePO4 battery provides a minimum of 3 hours emergency duration and has a recharge period of less than 24 hours, ensuring quick recovery after emergency use.
What mounting options are available?
The Solent can be ceiling or wall mounted using standard fixings. Additionally, an optional semi-recessing kit (E/BEZ/SOL) is available for flush mounting applications where a more integrated appearance is desired.
What are the advantages of LiFePO4 battery technology?
LiFePO4 batteries offer longer service life, better environmental performance, more stable performance across temperature ranges, and lower environmental impact compared to traditional battery technologies.
How bright is the emergency output?
The Solent provides 150 lumens emergency output at 6000K colour temperature, delivering clear white light for effective emergency illumination across a wide area.
What standards does the Solent comply with?
The Solent meets BS EN60598-1:2008 and other relevant emergency lighting standards, ensuring compliance with UK building regulations and fire safety requirements.
How do I know if the luminaire is functioning correctly?
The Solent features an integral green LED charge indicator to show normal operation and a red LED fault indicator for system monitoring, providing clear visual status indication.
What conduit entry options are available?
The Solent accommodates either 16mm or 20mm conduit entry, providing flexibility for different cable management requirements and installation scenarios.
Specifications
- Product Code : E/SOLENT/M3/Li
- Light Source : White LED
- IP Rating : IP65
- Emergency Duration : 3 hours (minimum)
- Lumen Output : 150 lm (Maintained & Emergency output)
- Colour Temperature : 6000K
- Mains Current : 50mA (max) 35mA quiescent (3W)
- Recharge Periods : Less than 24 hours
- Charge Indicator : Integral green LED
- Fault Indicator : Red LED fault indicator
- Changeover Voltage : As per requirements of BS EN 60598-1:2008
- Battery : 3.2V 1500mAH LiFePO4
- Construction Material : Polycarbonate
- Mounting Options : Ceiling or wall mounted
- Dimensions : 352mm x 110mm x 68mm (L x W x D)
- Conduit Entry : 16mm or 20mm
- Operation Modes : Maintained / Non-maintained
- Gear Tray : Hinged screwless design
- Diffuser : Optically enhanced
- Standards Compliance : BS EN60598-1:2008 and other relevant standards
- Installation Environment : Internal and external
- Design : Sleek and minimalistic
- Weight : Lightweight construction
- Environmental Impact : Low environmental impact and running costs
- Accessories : Pictogram pack included
- Optional Accessories : Semi-recessing kit (E/BEZ/SOL)
- Replacement Battery : B/BATT/MM/Li
- Manufacturer : Channel Safety Systems
Downloads
- Datasheet (Adobe PDF)
