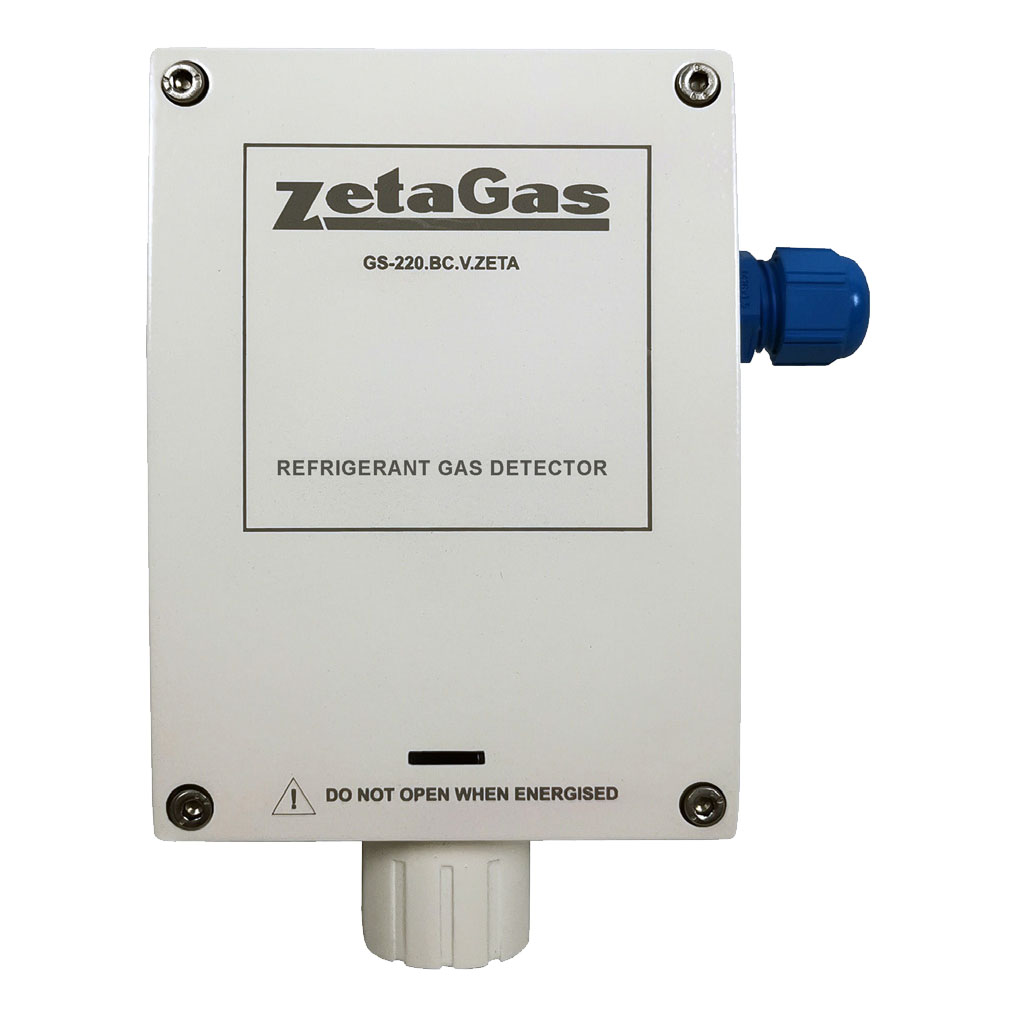

Zeta Analogue ATEX Refrigerant Gas Detector
£325.00
Summary
The Zeta Analogue ATEX Refrigerant Gas Detector, model GS-220.BC.V.ZETA, is engineered to monitor levels of ammonia and various refrigerants including CFCs, HFCs, and HCFCs. It signals when levels exceed the recommended maximum permissible concentration. The detector employs a semiconductor sensor for rapid response and long sensor life, ensuring precise operation across a wide temperature range. A diagnostic feature monitors the sensor and communication lines, alerting users in case of faults. Calibration is performed remotely using a magnetic key, simplifying periodic testing and maintenance. The device is housed in a durable metal enclosure with an IP65 rating, suitable for use in hazardous zones 1 and 2.
Features
- Semiconductor sensor for rapid response
- Analog current output
- LED status indication
- Self-diagnostic function for reliable operation
- Remote calibration with magnetic key
Specifications
- Measurement Principle: Semiconductor
- Measuring Range: Depending from the detected gas
- Output Signal: 4-20mA
- Working Voltage: 12 – 30VDC
- Power Consumption: 3W
- Weight: 0.620 kg
- Sizes: 155 x 95 x 48 mm
- Enclosure Material: Aluminium
- Ingress Protection: IP65
- Cable Connection: Cable Gland(s) – M16/M20
- Working Temperature: -20 – +50 °C
- Humidity: 10 – 90% RH
- Pressure: 1 bar ± 20%
- Runtime: More than 5 years under standard conditions
- Conformity Mark: CE
- ATEX Certification: II 2G Ex m a (ib) e IIC T4 Gb
