ZFP CAST Compact Controller
£491.33
Summary

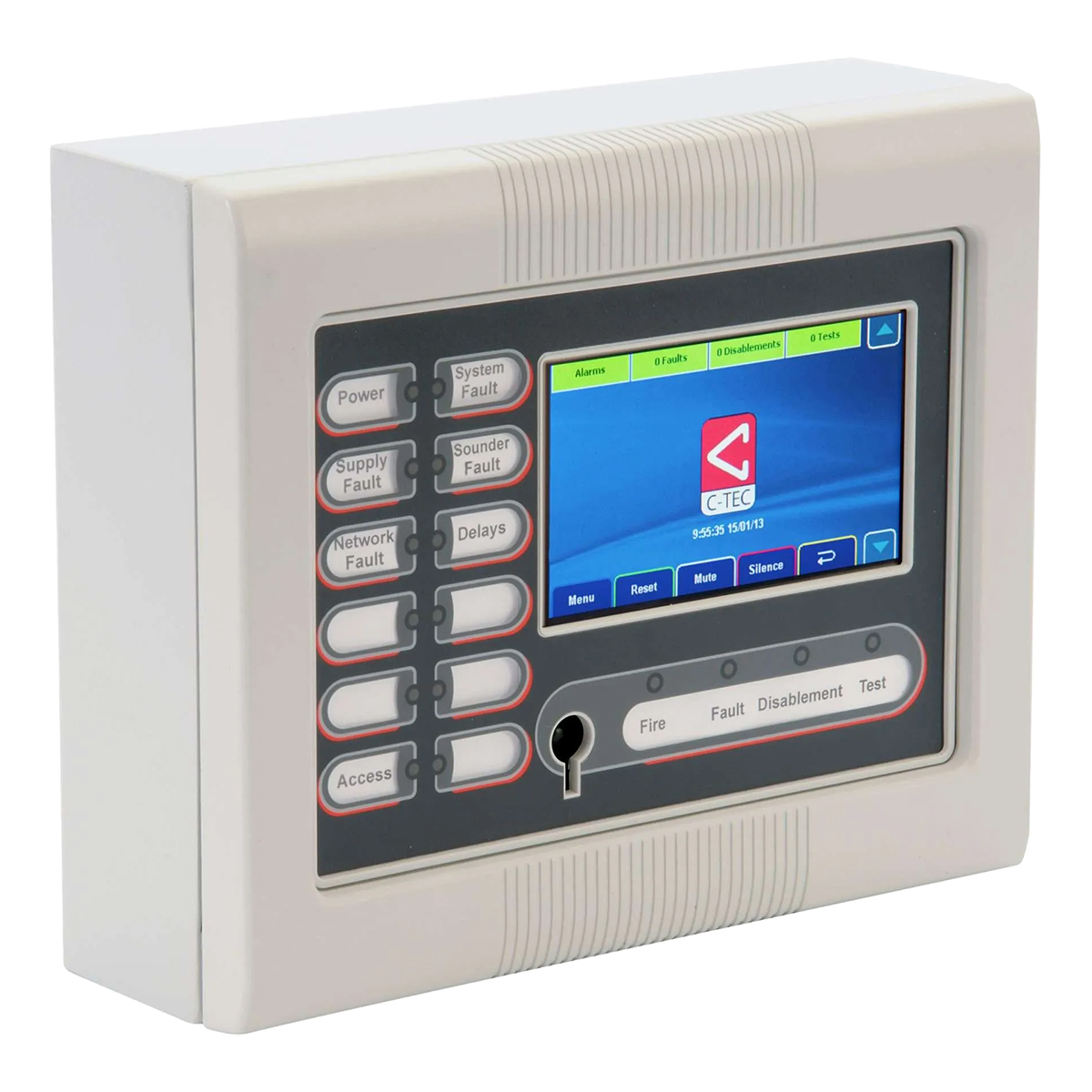

The ZFP Compact Controller (Surface) is an advanced network device designed for use in fire alarm systems. It functions as a compact repeater panel, enhancing the capabilities of traditional fire alarm setups. Featuring a sleek design, the controller is equipped with a Z41 Touchscreen Control Module and a ZHN ‘Hi-Net’ multi-path fault-tolerant network PCB, making it an ideal choice for modern building environments.
With its stylish surface mounting enclosure, measuring just 214mm x 178mm x 70mm, the ZFP Compact Controller not only provides essential fire safety functions but also adds a touch of elegance to reception areas and access points. It supports up to 64 Compact Controllers connected to a ZFP network, ensuring comprehensive coverage and control.
Features
- Includes Z41 touchscreen control module
- Houses ZHN ‘Hi-Net’ multi-path fault-tolerant network PCB
- Requires separate EN54-4 boxed PSU
- Interactive touchscreen with menu-sensitive buttons
- Plastic construction with RAL7035 finish
- IP41 rated for protection against dust and moisture
- Operating temperature range of -5ºC to +40ºC
Specifications
- Protocol/Compatibility: CAST
- Power Requirements: Requires Separate EN54-4 PSU
- Touchscreen Resolution: 480 x 272 Pixels
- LED Indicators: 16 LEDs (11 Reserved for Mandatory EN54 Indicators)
- Product Dimensions: 214 W x 178 H x 70 D mm
- Construction & Finish: Plastic Detachable Lid and Back Box, RAL7035
- IP Rating: IP41
- Weight: 1.27 kg (Unpacked)
- Operating Conditions: -5ºC to +40ºC, Max Relative Humidity 95% Non-Condensing
Downloads
- Datasheet (Adobe PDF)
Additional information
| Touchscreen | |
|---|---|
| Mounting | Flush, Surface |
| Protocol | |
| System Type | |
| Device Type |
