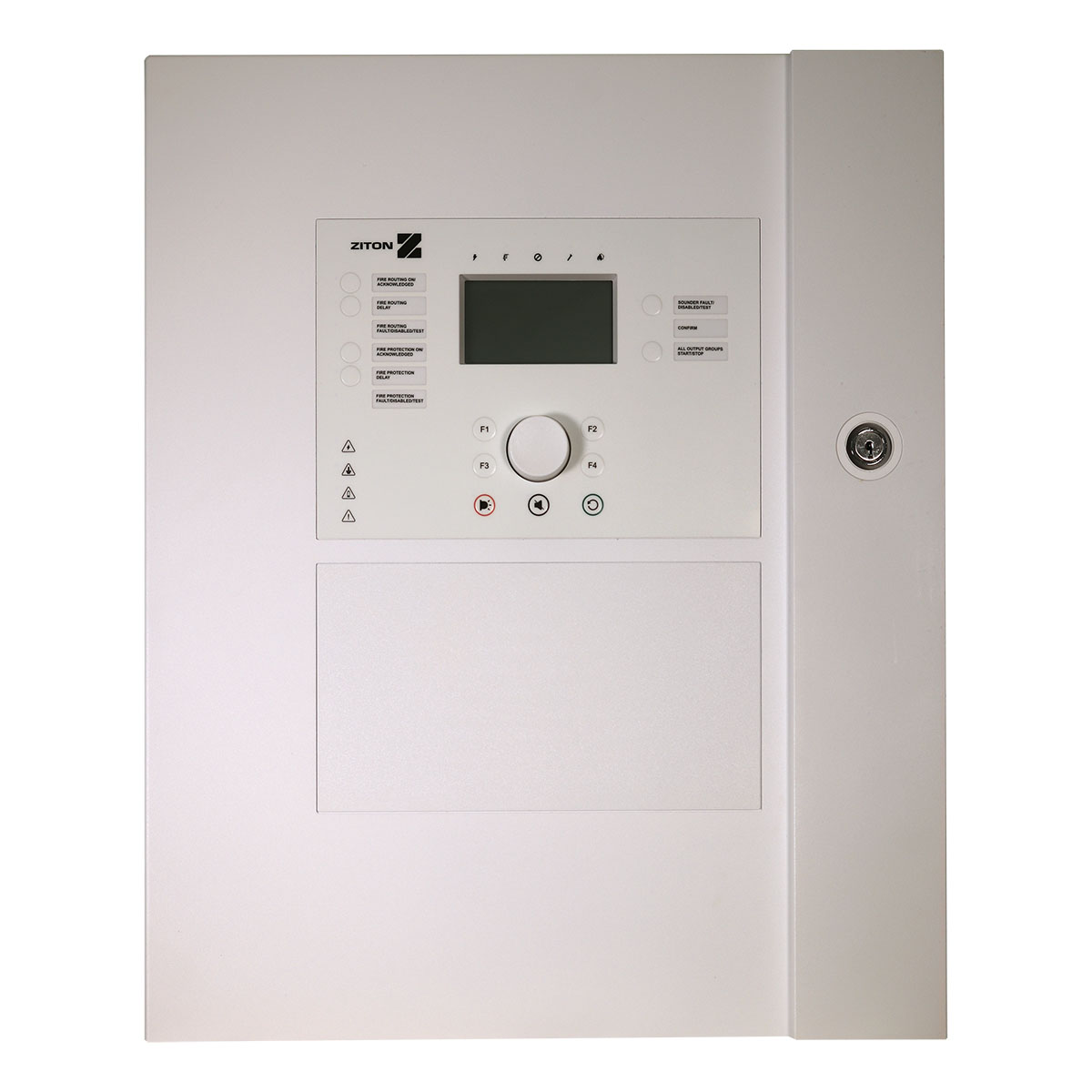

Ziton ZP2-A 1 Loop Panel in Large Cabinet
£451.29 (inc VAT: £541.55)
Summary
The new ZP2-A series life safety control systems bring the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. Based on ZP2 series learned experience and with complete backwards compatibility, the new ZP2-A features an attractive contemporary design that fits with any decor. With improved robustness, manufactured in metal, special plastics and easy electronics removal, it allows painting in any colour. The main controls are easily located using an improved and robust jog dial.
With high power loop addressable detection, a full line of easily configured option cards and modules, as well as USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits building owners and life safety system installers alike.
Features
- Supports up to 254 devices in 512 zones
- Standard 2 supervised sounder/fire-routing outputs
- 2 conventional relay outputs and 2 supervised outputs
- Network board supports up to 64 nodes
- Auto configuration and setup wizards
- EN54 compliant graphical LCD with icons
- 3 USB ports with memory stick support
- Integration with management software ATS8600
- Email notification for events
- History log memory for 9999 events
Specifications
General
- Form Factor : Large
- Maximum System Capacity (Device Count) : Up to 32512
- Physical Dimensions : 446 x 536 x 164 mm (W x H x D)
- Net Weight : 9.8 kg (without battery)
- Network Size (Nodes) : Up to 64
- Shipping Weight : 10.1 kg
- Colour : White (RAL 9003)
Electrical
- Mounting Type : Surface mount
- Power Supply Type : VAC
- Operating Voltage : 110 / 240 VAC (+10%/-15%), 50 / 60 Hz (±5%)
- Mains Supply Cable Type : 3 x 1.5 mm² (live, neutral, earth)
- Cable Entries : 18 (20 mm) / 2 (20 mm) / 2 removable plates (top / bottom / back)
- Material : Steel (painted)
- Current Consumption : Nom. 0.6 / 1.3 A, Max. 1.5 A / 3.15 A
- Fuse Rating : 2 / 4 A
Environmental
- Operating Temperature : -5 to +40°C
- Storage Temperature : -20 to +50°C
- Relative Humidity : 10 to 95% noncondensing
- Environment : Indoor
- IP Rating : IP30, indoor use only
Loop
- Maximum Loop Capacity : 1
- Type And Rating : 800 mA at 20 VDC (19.95 to 20.05 VDC)
- Cable Rating : Recommended 2 core 1.5 mm² twisted pair ; 52 ohm / 500 nF ; max. 2 km
Zone
- Maximum Zone Capacity : Up to 512
Regulatory
- Compliancy : CPD, RoHS, WEEE
- Certification : EN54-13, EN54-2, EN54-21, EN54-4
Input
- Input Quantity : 2
- Input Type And Rating : Supervised, maximum load 150 mA
- Programmable : 2
- Termination : 15 kohm
Output
- Fire Alarm Signalling : 350 mA / 21 to 28 VDC (24 VDC nominal)
- Fault Signalling : 350 mA / 21 to 28 VDC (24 VDC nominal)
- Notification : 8 sounder outputs
- Supervisory Voltage : Supervised, 4, 750 mA / 21 to 28 VDC (24 VDC nominal)
- Auxiliary Power : 1 resetable, 500 mA / 21 to 28 VDC (24 VDC nominal)
- Programmable : Up to 8 (2 per loop board) / 21 to 28 VDC (24 VDC nominal)
- Termination : 15 kohm
Standby Battery
- Capacity : Max. 2 x 12 V / 18 Ah (use supplied cables)
- Charging : 27.3 V at 20ºC ; 36 mV/ºC
- Low Battery Warning Threshold : 23.6 VDC ± 1% at 25ºC
- Batteries Supported In Housing : Max. 2 x 12 V / 18 Ah (use supplied cables)
Downloads
- Datasheet (Adobe PDF)
