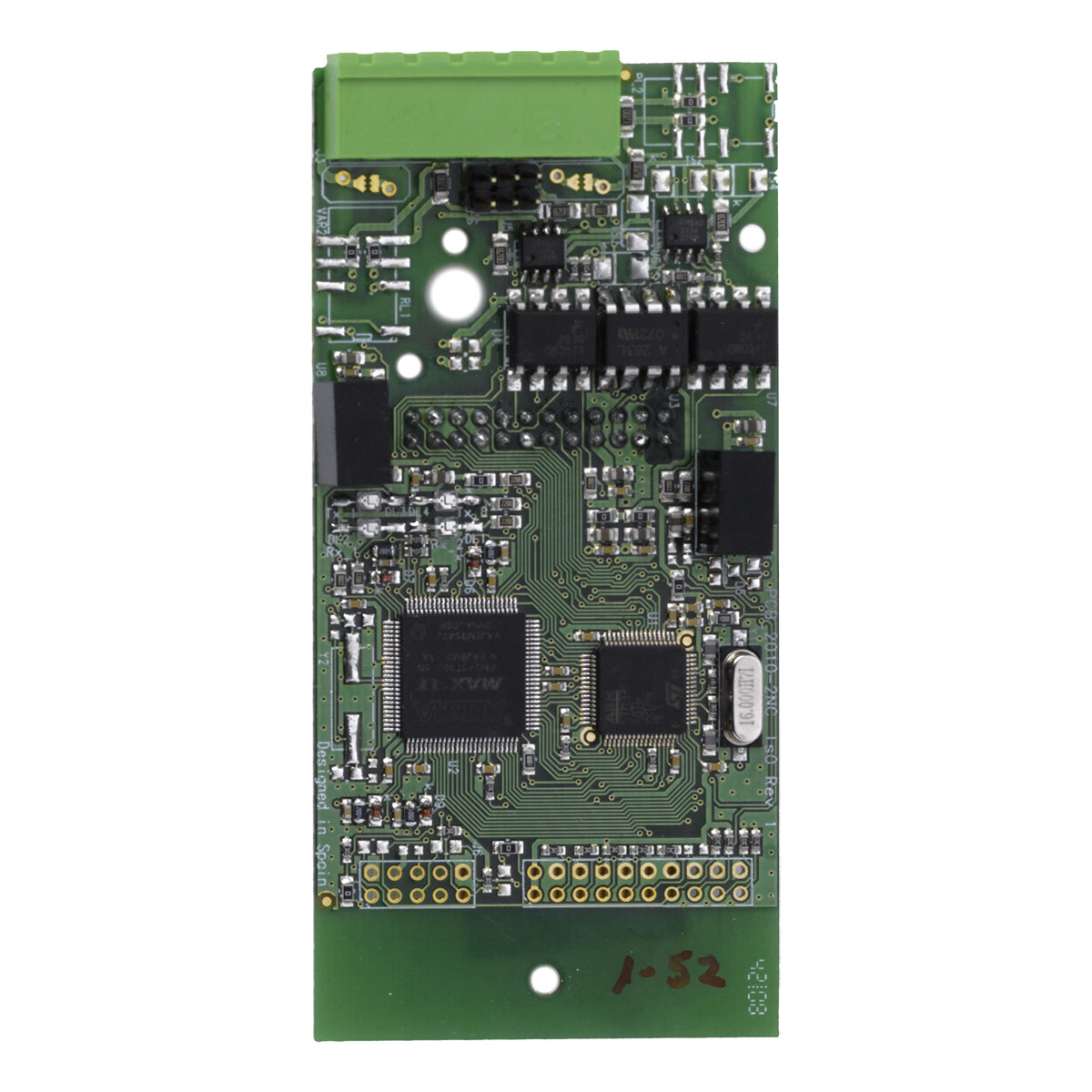

Ziton ZP2-A Network Card
£157.10 (inc VAT: £188.52)
Summary
The 2010-2-NB is an addressable fire panel accessory featuring a network printed circuit board. It enables the creation of a robust class A redundant network with up to 32 nodes via RS485, supporting a maximum of 32 loops. Each node can be a fire panel or a fire panel repeater. For distances greater than 1200 meters between nodes or in cases of EMC issues, a copper/fiber converter is recommended.
Features
- Enables user interface repetition across multiple locations
- Supports network expansion for multi-building sites
- Direct plug-in installation on the main board chassis
- Plugable connectors for easy setup
Specifications
General
- Network Size (Nodes) : Up to 64
Physical
- Form Factor : Large
- Physical Dimensions : 129 x 55 x 158 mm (W x H x D)
- Net Weight : 40 g
- Shipping Weight : 87 g
- Mounting Type : In cabinet
Environmental
- Operating Temperature : -8 to +42°C
- Storage Temperature : -10 to +50°C
- Relative Humidity : Max. 95% noncondensing
Regulatory
- Certification : EN54-13, EN54-2
- Environmental : CPD
- WEEE : Compliant
- RoHS : Compliant
Downloads
- Datsheet (Adobe PDF)
Additional information
| Protocol | |
|---|---|
| System Type | |
| Device Type |
