Ziton ZP7 Series Addressable Multisensor
£36.30 (inc VAT: £43.56)
Summary

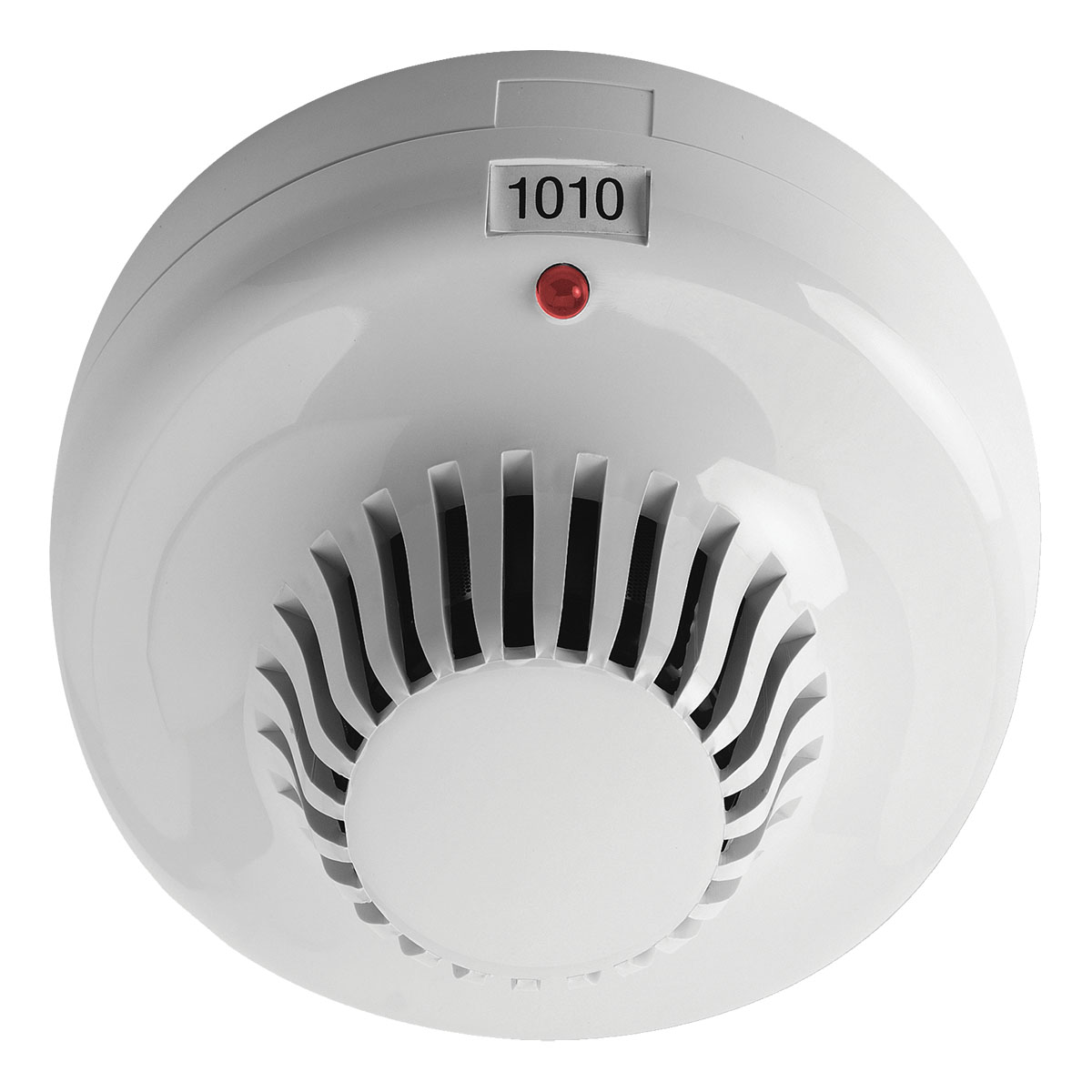

The ZX832-3P is a polar white, addressable optical/heat multi-criteria detector designed for Ziton addressable fire alarm systems. This advanced detector offers early warning capabilities for fire or smoke while effectively discriminating against false alarms. Utilising fuzzy logic software and multi-criteria sensing, the ZX832-3P integrates high sensitivity smoke and thermal sensors to accurately identify real fire conditions. The detector’s response can be tailored to specific hazards through selectable software algorithms, which can also adjust for day/night operation. With a low-profile design, the ZX832-3P features an advanced self-test facility and a built-in LED indicator for alarm conditions, making it suitable for applications requiring high alarm integrity.
Features
- Integrated high sensitivity smoke and thermal sensors
- Selectable software algorithms for specific hazards
- Advanced self-test facility with built-in LED indicator
- Low-profile design with automatic base locking
- Compatible with ZP7 addressable fire alarm systems
- Automatic compensation for calibration changes
Specifications
- Compatible Products : ZP7 addressable systems
- Status Indication : Alarm LED (red)
- Addressing Method : DIP Switches
- Power Supply Type : Loop powered
- Operating Voltage : 19.5 to 20.5 V
- Current Consumption : 600µA (Quiescent), 700µA (Alarm)
- Detection Principle : Smoke & Heat
- Sensitivity : Configurable
- Coverage Area : 100m² (Optical), 50m² (Heat)
- Output Quantity : 1
- Output Type And Rating : Remote indicator
- Remote Alarm Output : Yes
- Physical Dimensions : 106 x 58mm
- Net Weight : 105g (excluding base)
- Colour : Signal white (RAL 9003)
- Mounting Type : Base mount, Ceiling mount, Recessed mount
- Material (Body) : Moulded ABS
- Operating Temperature : -10ºC to +85ºC
- Storage Temperature : -20ºC to +70ºC
- Relative Humidity : 20 to 95%
- Environment : Indoor
- IP Rating : IP32
- Compliancy : CE, REACH, RoHS 3, WEEE
- Certification : CPR
- Standards : EN54-5, EN54-7
