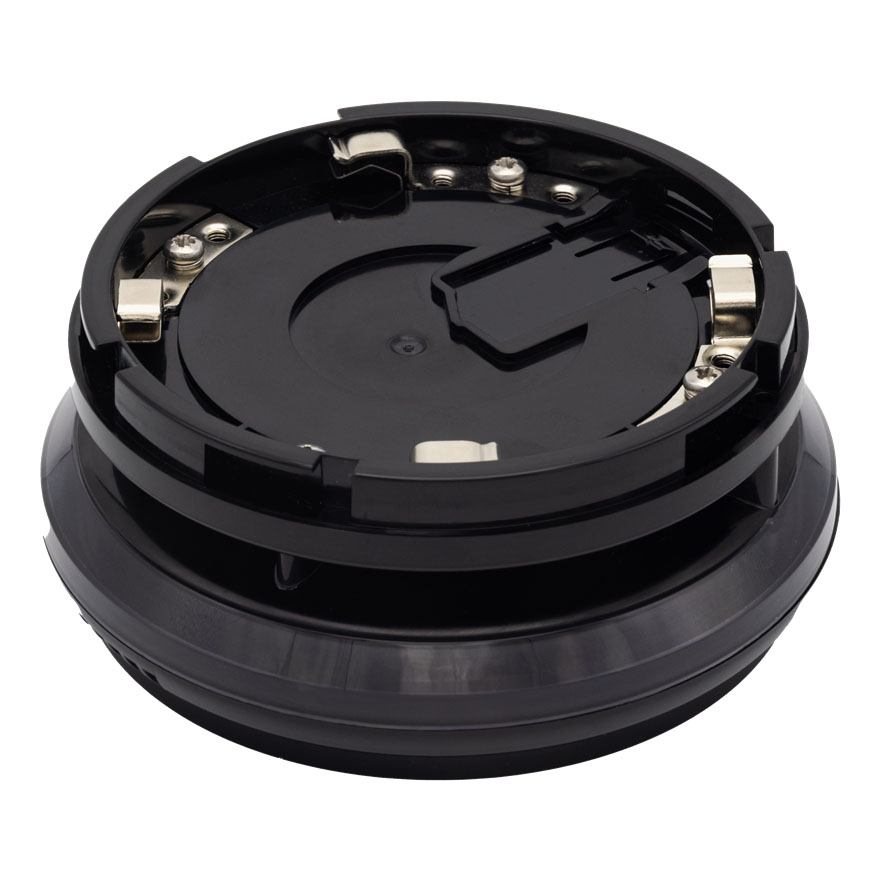

Apollo Discovery Base Sounder
Summary
The Discovery Base Sounder by Apollo is a versatile device designed for use with Apollo addressable detectors or as a standalone unit. It offers a range of features including group, global, and individual control, as well as status reporting. The sounder is configurable through a fire control panel, allowing for selectable tone and volume settings. This device is ideal for ensuring effective auditory alerts in various environments.
Designed for simple installation using an XPERT 8 base, the Discovery Base Sounder is compatible with both Discovery and CoreProtocol digital communication systems. It provides reliable performance with a maximum sound output of 95 dB(A) and operates efficiently within a wide temperature range. The sounder is also compliant with essential EMC and Construction Products Regulation requirements.
Features
- Adjustable tone and volume
- Software defined group addressing
- Unique acoustic self test
- Set-up and testing at installation
Specifications
- Supply Voltage : 17 V – 35 V dc
- Quiescent Current : 0.7 mA
- Power-up Surge Current : 0.7 mA
- Alarm Current : 6.85 mA
- Maximum Sound Output : 95 dB(A)
- Operating Temperature Range : -20°C to +70°C
- Humidity : 0% to 95% RH (no condensation or icing)
- IP Rating : IP21C
- Dimensions : 110 mm diameter x 46 mm deep
- Weight : 198 g
- Materials : White flame-retardant polycarbonate housing, Nickel plated stainless steel terminals
