Apollo Discovery Base Sounder Visual Indicator
Summary

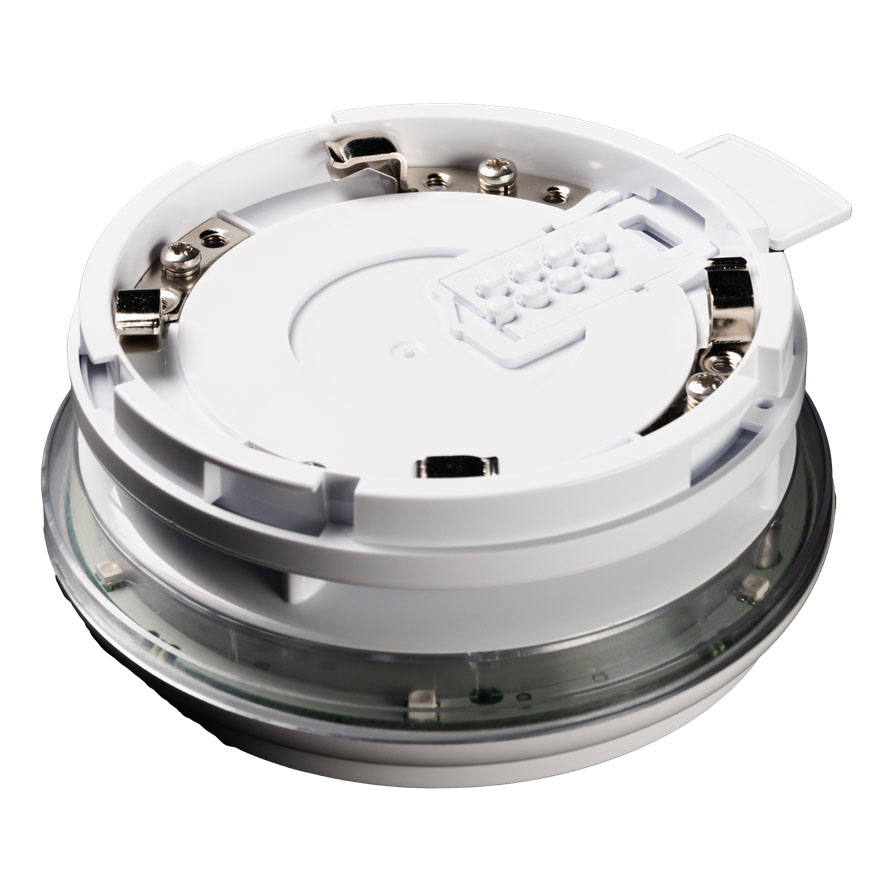

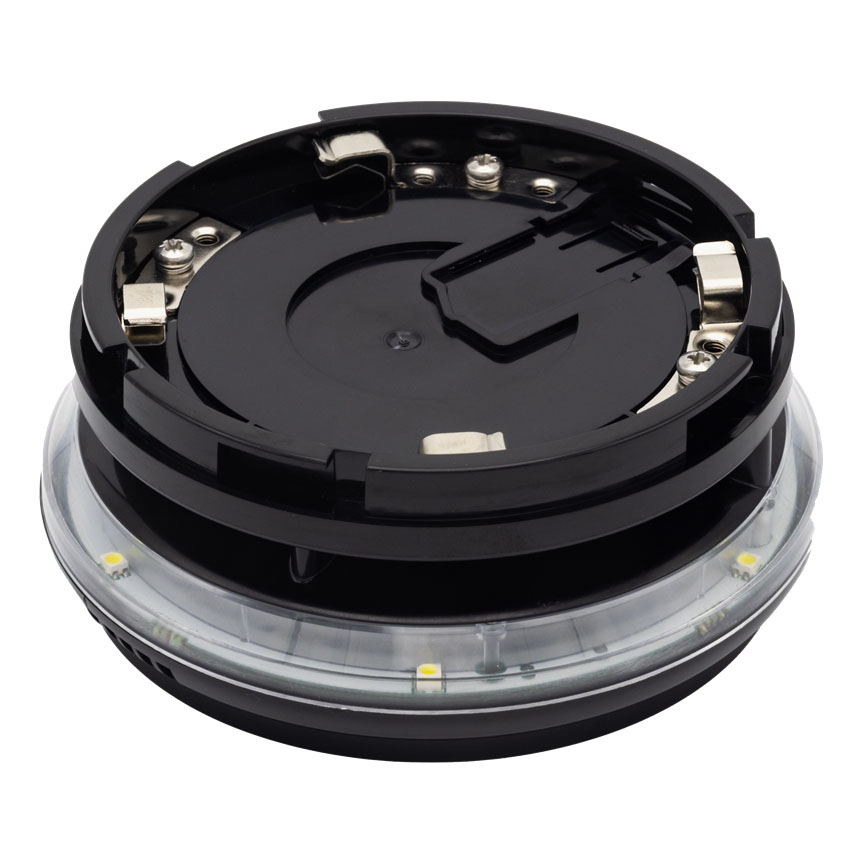

The Discovery Base Sounder Visual Indicator by Apollo is a versatile and reliable device designed for use in fire detection systems. It is available in both white and red flash versions, making it suitable for a variety of environments and applications. This device can be integrated with an Apollo addressable detector or used as a stand-alone unit with a base cap, providing flexibility in installation and usage.
Featuring digital communication compatibility with Discovery and CoreProtocol®, the Discovery Base Sounder Visual Indicator offers advanced functionality such as group, global, and individual control, status reporting, and selectable tone and volume settings. These features are configured through the fire control panel, allowing for tailored operation to meet specific safety requirements.
Features
- Simple installation using an XPERT 8 base
- Adjustable tone and volume (15 tone pairs, 7 volume settings)
- Built-in isolator (when used with XPERT 8 Base)
- Unique acoustic self test
- Set-up and testing of devices at point of installation
- Independent control of sounder and visual indicator
- Available in red or white flash
Specifications
- Supply Voltage : 17 V – 35 V dc
- Quiescent Current : 0.7 mA
- Power-up Surge Current : 0.7 mA
- Flash Rate : 0.5 Hz (Default), 1Hz (Optional)
- Alarm Current, Sounder and VID On : 8.65 mA
- Maximum Sound Output : 95 dB(A)
- Operating Temperature Range : -20°C to +70°C
- Humidity : 0% to 95% RH (no condensation or icing)
- IP Rating : IP21C rating approved as per EN54-3
- Dimensions : 110 mm diameter x 46 mm deep
- Weight : 198 g
- Materials Housing : White flame-retardant polycarbonate
- Materials Terminals : Nickel plated stainless steel
