Apollo Intelligent Open-Area Sounder
£38.41
Summary
The Apollo intelligent open-area sounder is a versatile and advanced alarm device designed for use in open areas. It integrates seamlessly with CoreProtocol®, Discovery, and XP95 systems, offering a range of customizable features to suit various environments and requirements. This sounder is engineered to provide reliable and effective auditory alerts, with adjustable tone and volume settings that can be configured through the fire control panel. Its robust construction and compliance with essential safety and performance standards make it an ideal choice for enhancing safety in diverse settings.
Features
- Compatible with CoreProtocol®, Discovery, and XP95 systems
- 15 selectable tone pairs and seven volume levels
- Software defined group addressing with up to 16 group addresses
- Alarm switching by individual device, group address, or all devices on the loop
- Set-up and testing at point of installation
- Unique acoustic self-test feature
- Complies with EMC Directive 2014/30/EU and Construction Products Regulation (EU) 305/2011
Specifications

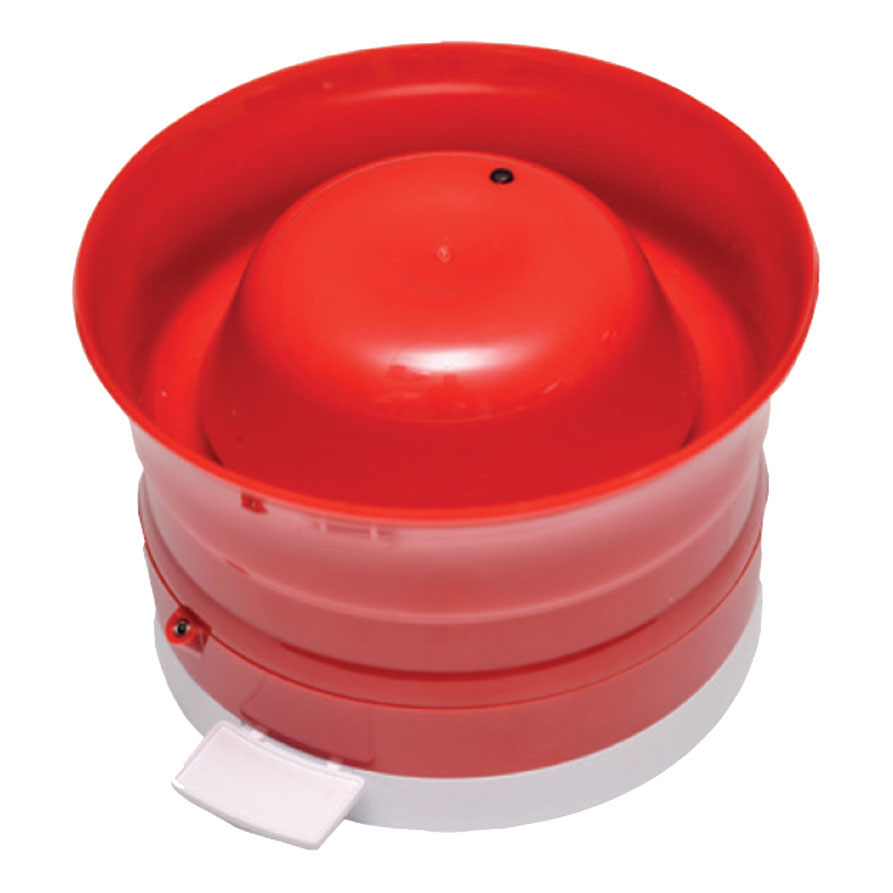

- Product Sounder – Red Body : Part No. SA5500-300

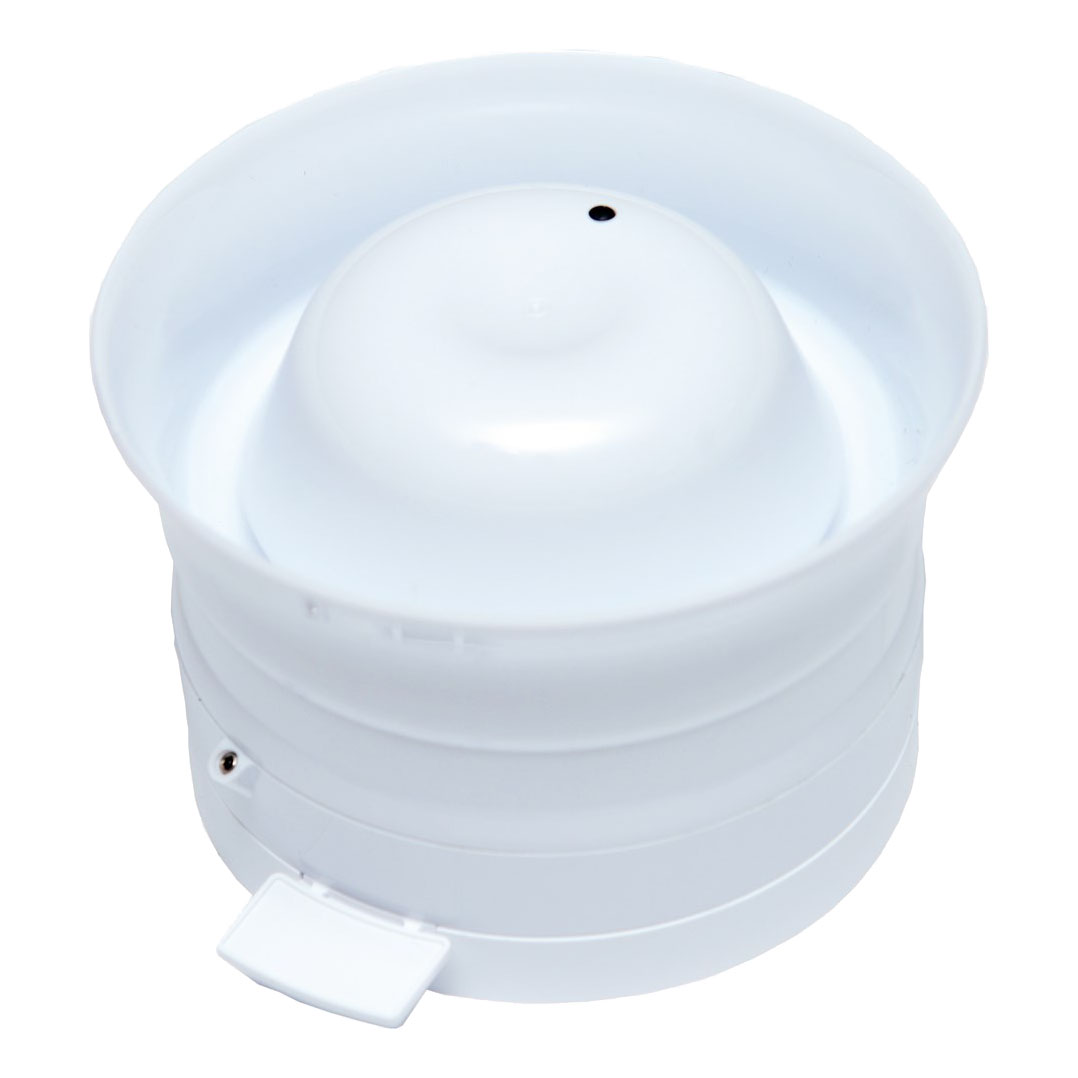

- Product Sounder – White Body : Part No. SA5501-300
- Supply Voltage : 17 V – 35 V dc
- Quiescent Current : 890 µA
- Alarm Current, LED On : 5.95 mA (max volume at 24 V)
- Maximum Sound Output : 101 dB(A) at 1m
- Operating Temperature : -10°C to +55°C
- Storage Temperature : -10°C to +55°C
- Humidity : 0% to 95% RH (no condensation or icing)
- IP Rating : IP 33
- Dimensions : 113 mm diameter x 65 mm deep
- Weight : 178 g
- Materials Housing : White or red flame-retardant polycarbonate
- Terminals : Tin plated stainless steel
Downloads
- Datasheet (Adobe PDF)
