Apollo XP95 Category C Open-Area White VAD
Summary
The Apollo XP95 Category C Open-Area Visual Alarm Device (VAD) is a reliable and efficient solution for visual alerting in open areas, particularly where sounders might not be heard or where hearing-impaired individuals are present. Designed to be compatible with XP95, Discovery, and CoreProtocol systems, these VADs provide synchronized visual alerts using high-intensity LEDs. Available in both red and white bodies with a white flash, these devices ensure compliance with EN 54-23 standards, offering robust performance in various installation environments.
Features
- Uses high intensity LEDs for effective visual alerts
- Wide angle of visibility for enhanced coverage
- Fault signal if LED check fails
- Synchronised flash rates with the Apollo Protocol
- Compatible with XP95, Discovery, and CoreProtocol systems
- Loop powered, requiring no external power supply
Specifications
- Product Type : Visual Alarm Device

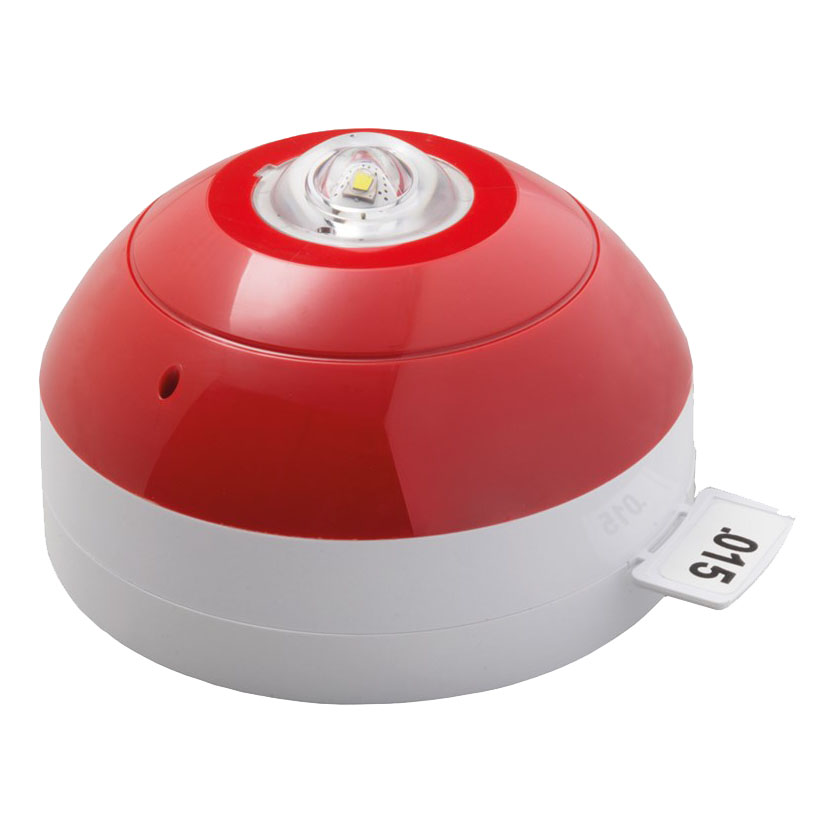

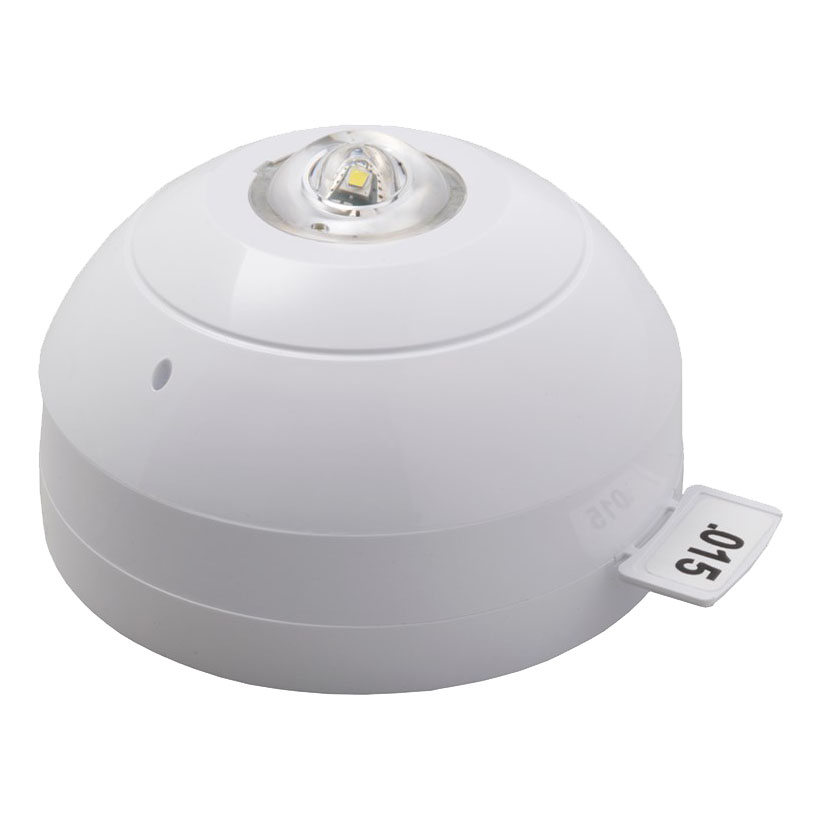

- Part No. : 55000-742 (Red Body, White Flash, C-3-8), 55000-745 (White Body, White Flash, C-3-8)
- Coverage Class : C-3-8
- Flash Colour : White
- Flash Rate : 0.5 Hz
- Supply Voltage : 17 V – 28 V dc (polarity sensitive)
- Power Up Surge Current : 1.5 mA
- Quiescent Current : 280 µA
- Alarm Current (LED On) : 12.0 mA (C-3-8)
- Operating Temperature : -10°C to +55°C
- Humidity : 0% to 95% RH (no condensation or icing)
- IP Rating : IP54 with standard mounting base, IP55 with Deckhead Mounting Box
- Dimensions : 100 mm diameter x 50 mm height (58 mm with XPERT 7 Mounting Base)
- Weight : 105 g
- Material : White / Red fire retardant polycarbonate
Downloads
- Datasheet (Adobe PDF)
