CAST Wall Voice Sounder
Key features
- Superb sound intelligibility
- Onboard short-circuit loop isolator
- Four selectable volume levels
Downloads
Summary

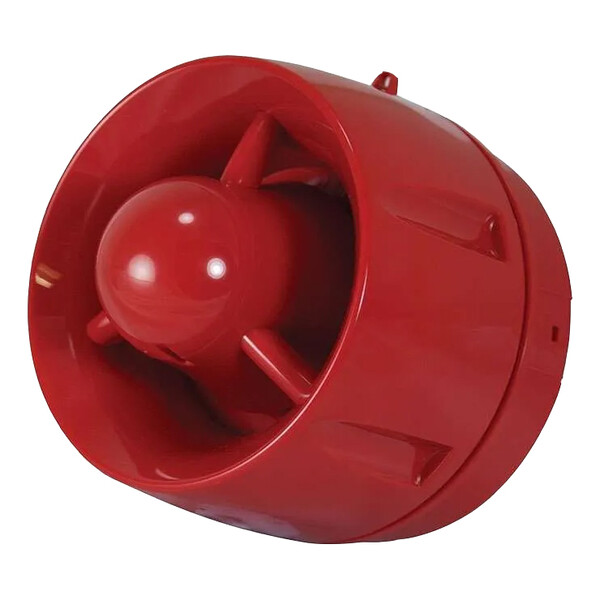

The C-TEC CA446A is a high-output wall-mounted Voice Sounder designed to deliver exceptional sound intelligibility in fire alarm systems. This device features multiple selectable messages and tones, ensuring clear communication during emergencies. With its robust construction and advanced capabilities, the CA446A is an ideal choice for enhancing safety in various environments.
View full overview Show less
Utilising the innovative CAST protocol, this sounder allows for seamless integration with multiple devices, improving the overall efficiency and responsiveness of fire alarm systems.
Features
- Six selectable messages with tones
- Group addressing facility for simultaneous operation of multiple devices
- IP33C rated for outdoor use
- 15.5mA typical alarm current
- Custom messages and CAST Lockdown Sounders available to special order
Specifications
- Protocol/compatibility : Compatible with C-TEC’s CAST protocol Addressable Fire Panels
- Application/operation : Designed to be wall mounted. Indoor areas only
- Supply/operating voltage: 27 to 40V DC.
- Quiescent current : 470µA typical
- Nominal SPL (Sound Pressure Level) : 92dB(A) @ 1m
- Alarm current : 15.5mA @ 24-40V DC (sounder on max)
- Indicators : Polling (red LED)
- Dimensions : 108.3 mm diameter, 99.5 mm deep (incl base)
- IP Rating : IP21C (Type A)
- Weight : 215g
- Operating conditions/temperature: -10ºC to +55ºC. Max. 95% RH (Non-condensing)
Downloads
- Datasheet (Adobe PDF)
