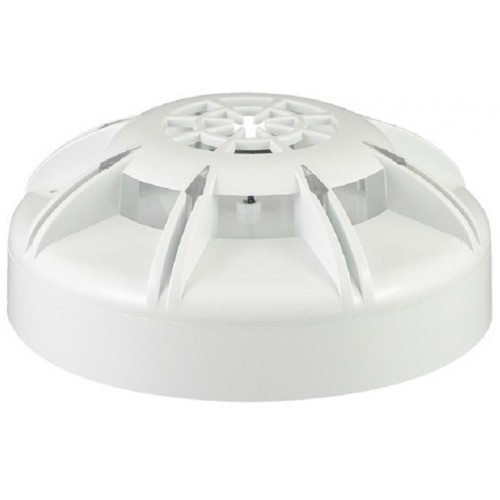

Fyreye MKII Addressable Fixed Heat (CS90) Detector
You may also need
Key features
- Designed to meet EN54 requirement
- Lockable to base to stop unauthorised removal
- Remote LED output
- 8 LEDs for improved, 360° visibility
- Compatible with all Fyreye MkII bases
- Addressed with dip switches or hand-held programmer
Downloads
Summary
The Fyreye MkII range of addressable detectors have extra LED’s to improve detector identification in an alarm condition.
View full overview Show less
The Fyreye fixed heat detector (MKII-AHF) has a single thermistor arrangement that gives an alarm at a temperature of 57°C, where the MKII-AHF/ CS90 gives an alarm above 86°C.
Features
- Designed to meet EN54 requirement
- Lockable to base to stop unauthorised removal
- Remote LED output
- 8 LEDs for improved, 360° visibility
- Compatible with all Fyreye MkII bases
- Addressed with dip switches or hand-held programmer
Specifications
- Model: MKII-AHF/CS90
- Detector Class: Fixed Heat Only CS
- Design Standard: EN54 part 5
- Approval: LPCB
- Operating Voltage: 17 to 28V DC
- Quiescent Current: 500μA
- Alarm Current @ 24V DC: 5mA
- Operating Temperature: -10°C to +50°C
- Minimum Continuous Temperature: 0°C
- Maximum Humidity: 95% RH non-condensing
- Alarm Condition: Fixed heat trigger @90°C
- Coverage: 50m²
- IP Rating: IP43
- Start-up Time: 10 Seconds
- Size (with Base): 100 x 48 mm
- Weight (with Base): 75g (133g)
- Remote Output: 20mA at 24VDC
Downloads
- Datasheet (Adobe PDF)
- Installation Manual (Adobe PDF)
