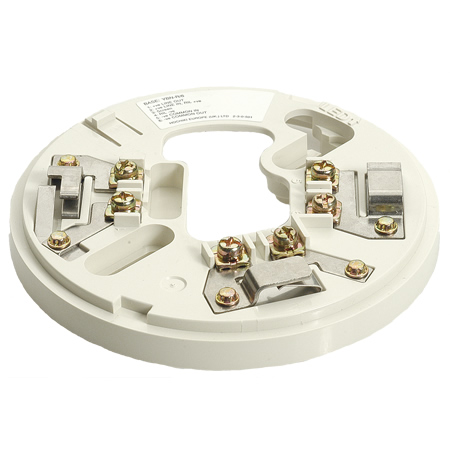

Hochiki YBN-R/6M Marine Approved Standard Base
£3.89 (inc VAT: £4.67)
Key features
- Low Profile (only 8mm)
- Quick connections via square cable clamps
- Accepts 2.5 mm cables
- Bayonet slot, low insertion force for detectors
- Approved to MED by GL
- GL Type approval
Downloads
Summary
Model YBN-R/6M is a Conventional Detector Mounting Base approved for marine applications by GL (Germanischer Lloyd) and is associated with the CDX Range of Marine Approved Detectors.
View full overview Show less
It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.
Key Features
- Integral remote indicator output
- Low Profile (only 8mm)
- Rugged design
- Electronics free
- Quick connections via square cable clamps
- Accepts 2.5 mm cables
- Bayonet slot, low insertion force for detectors
- Approved to MED by GL
- GL Type approval
Specifications
- Ordering Code : YBN-R/6M
- Maximum Humidity : 95% RH – Non Condensing (at 40 °C)
- Colour / Case Material : Ivory / ABS
- Diameter (mm) / Height (mm) : 100 / 8
- Base Fixing Centres (mm) : 48 ~ 74
- Maximum Wire Thickness : 2.5 mm2 Cables
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.05 kg |
|---|---|
| Hazardous Applications | |
| Marine Applications | |
| Relay | |
| Short Circuit Isolator | |
| System Type |
