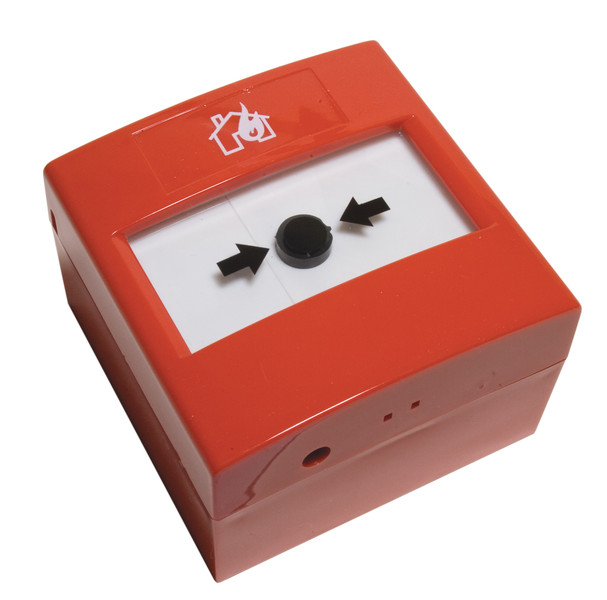

Nittan Evolution Indoor Manual Call Point
Summary
This Nittan Evolution manual call point is a resettable IP24 rated MCP suitable for indoor applications. The unit is DIP switch addressed and supplied complete with both a surface mounting back box and flush mounting wall plate.
This call point is also available with an optional short circuit isoltor.
Features
- Resettable manual call point for Nittan Evolution protocol.
- IP24 rated housing, suitable for indoor applications.
- DIL switched addressed.
- Supplied with both surface backbox and flush mounting wall plate.
- Available with optional short circuit isolator.
Specifications
- Part Number :
- EV-MCP-RESET : Standard
- EV-MCP2-SCI-IP24 : Integral Short Circuit Isolator
- Operation Method : Non Frangible, Resettable
- Operating Element : Microswitch
- Operating Voltage :
- EV-MCP-RESET (Standard) : 20V DC to 35V DC
- EV-MCP2-SCI-IP24 (Integral Short Circuit Isolator) : 20V DC to 38V DC
- System Voltage : 35V DC
- Quiescent Current : 200µA
- Alarm Current : 2mA (LED ON)
- Operating Temperature :
- EV-MCP-RESET (Standard) : -10°C to + 55°C
- EV-MCP2-SCI-IP24 (Integral Short Circuit Isolator) : -25°C to + 70°C
- Storage Temperature : -25°C to + 70°C
- Charging Time : 1 minutes
- Relative Humidity : ≤ RH95% non-condensing.
- I.P. Protection Rating : IP24
- Addressing Method : 8 Way DIL switch.
- Material : POM / Polycarbonate
- Dimensions : 87x87x23mm
- Mass : 115gms
- Connections : Flying Leads
- EMC Conformance : EMC conformance to BSEN50130-4
- CE Conformity :
- EV-MCP-RESET (Standard) : EN54-11:2001/A1:2005
- EV-MCP2-SCI-IP24 (Integral Short Circuit Isolator) : EN54-11 & EN54-17
- CPR/CPD Number :
- EV-MCP-RESET (Standard) : 2531-CPD-232.1690
- EV-MCP2-SCI-IP24 (Integral Short Circuit Isolator) : 0359-CPR-00440
- DoP Number :
- EV-MCP-RESET (Standard) : 1690
- EV-MCP2-SCI-IP24 (Integral Short Circuit Isolator) : 00440
Downloads
EV-MCP-RESET (Standard)
- Datasheet (Adobe PDF)
EV-MCP2-SCI-IP24 (Integral Short Circuit Isolator)
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.12 kg |
|---|---|
| Short Circuit Isolat | No, Yes |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| Short Circuit Isolator | |
| System Type | |
| Device Type | |
| Protocol |
