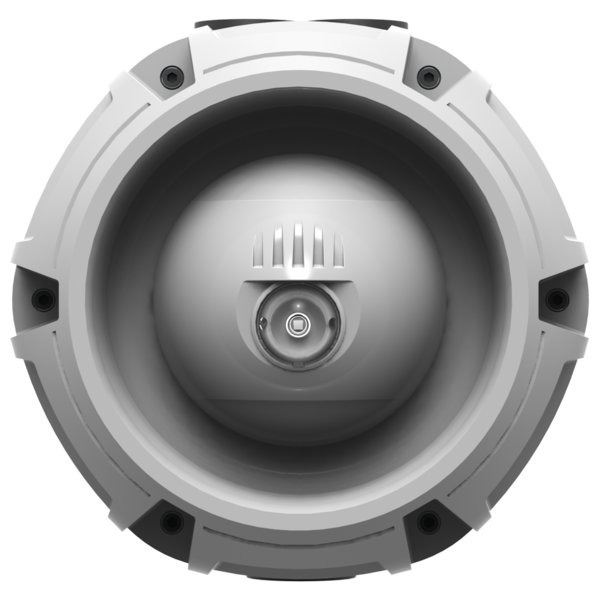

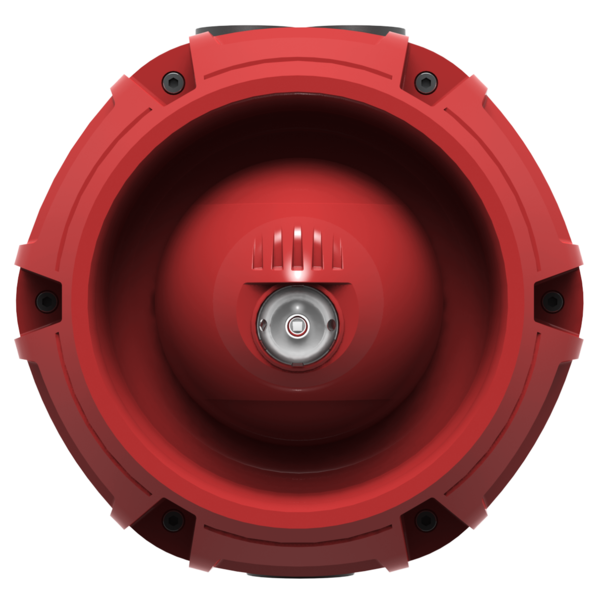

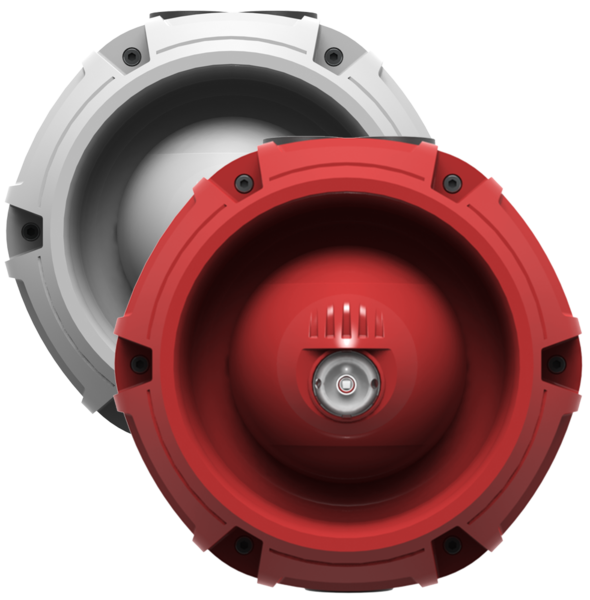

Raptor MKII Addressable Weatherproof Sounder & Beacon
£53.65
Key features
- IP65 weatherproof sounder/beacon
- Flashing rate 0.33Hz – 1.5Hz
- Available in red or white
Downloads
Summary
The Raptor addressable sounder with beacon has a coverage pattern of W 2.9 – 8.5 and the sounder part has 16 tones selectable at the control panel. It has a flash rates between 0.33Hz and 1.5Hz.
View full overview Show less
It has been designed to make an “electronics free” first fix and is available in red or white.
Key Features
- Complies with EN54 Pt 3 Type B & EN54 Pt 23.
- 107dB +/- 3dB @ 1m sound output.
- 16 Tone patterns (site selectable).
- Suitable for surface mounting only.
- Housed in UL V0 flame retardant ABS.
- 3 x 20mm cable entries (2 top, 1 bottom).
- First fix, wire to back box technology.
- Flashing rate 0.5Hz.
Specifications
- Voltage : 17 – 28V DC
- Quiescent Current : 1.5mA
- Alarm Current : 18-43mA
- Flash Colour : White
- Flash Frequency : 0.5Hz
- Body Colour : Red or White
- Sounder Type : B
- IP Rating : IP 65
- Operating Temperature : -10ºC to 55ºC
- Sound Output @ 1m : 100dB
- Size mm : 150 x 146 x 107.5
- Weight : 550g
Downloads
- Datasheet (Adobe PDF)
