Raptor MKII Addressable Weatherproof Sounder
£48.54
Key features
- IP65 weatherproof sounder
- 16 Tone patterns (site selectable)
- Available in red or white
Downloads
Summary

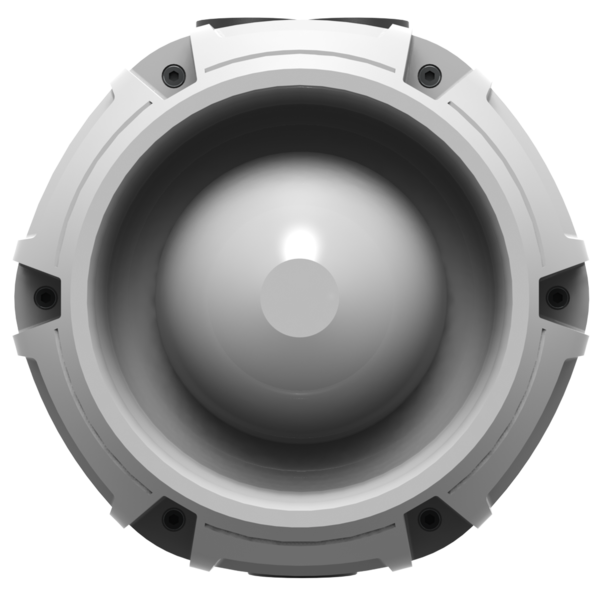

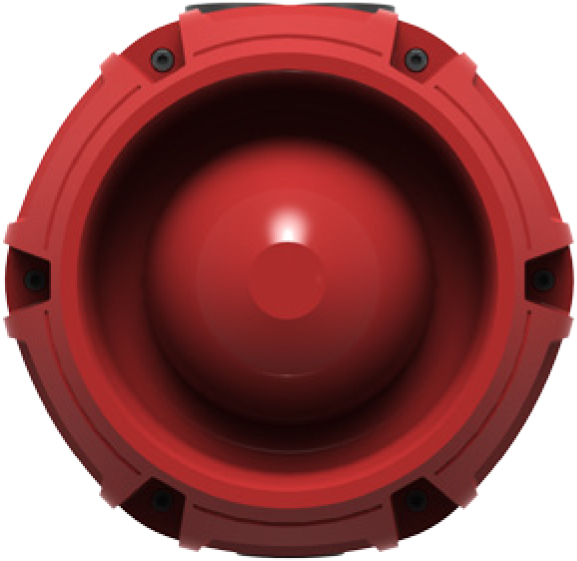

The Raptor addressable sounder is a large weatherproof horn sounder suitable for many indoor & outdoor applications.
View full overview Show less

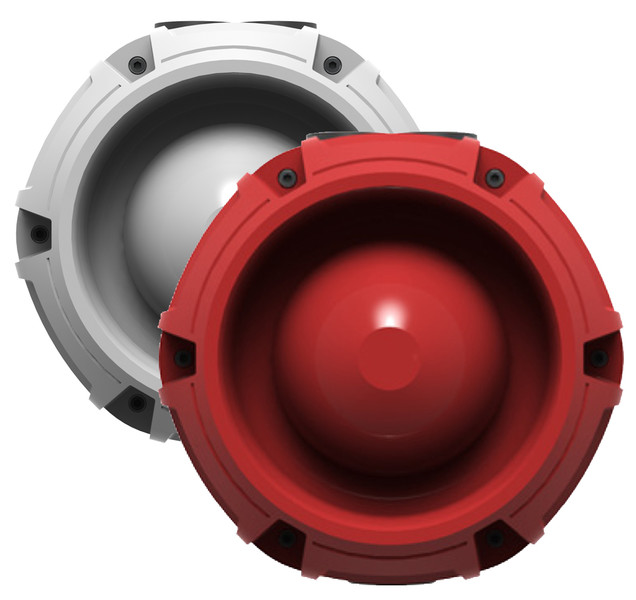

It is available in red or white and has 16 tones selectable at the control panel. Termination of field wiring is made to the backbox for a clean first fix.
Key Features
- Complies with EN54 Part 3 Type B.
- 107dB +/- 3dB @ 1m sound output.
- 16 Tone patterns (site selectable).
- Suitable for surface mounting only.
- Housed in UL V0 flame retardant ABS.
- 3 x 20mm cable entries (2 top, 1 bottom).
- First fix, wire to back box technology.
- IP65 Rating.
Specifications
- Voltage : 17 – 28V DC
- Quiescent Current : 1.5mA
- Alarm Current : 5.5mA
- Body Colour : Red or White
- Sounder Type : B
- IP Rating : IP 65
- Operating Temperature : -10ºC to 55ºC
- Sound Output @ 1m : 100dB
- Size mm : 150 x 146 x 98
- Weight : 540g
Downloads
- Datasheet (Adobe PDF)
