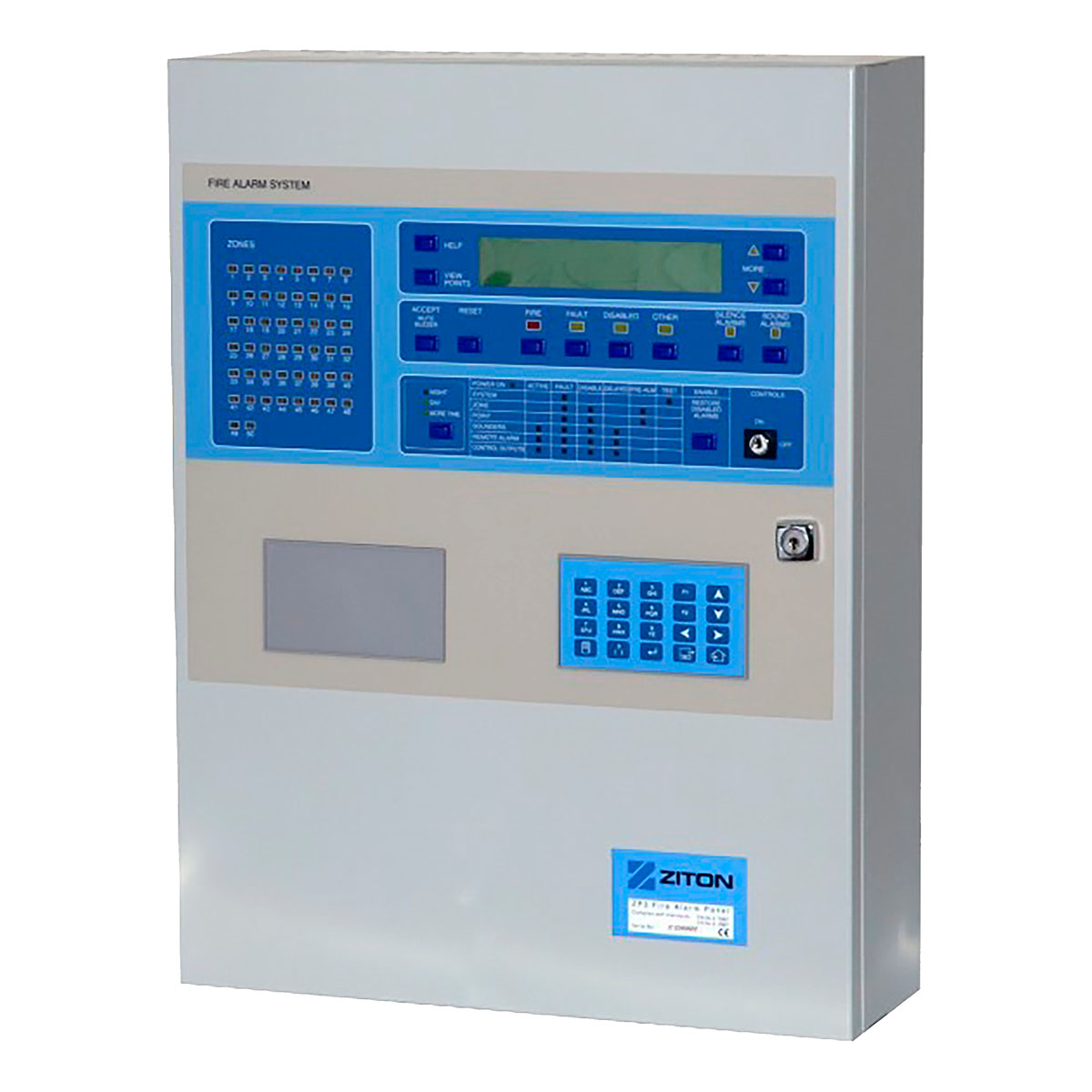

Ziton ZP3 4 Loop Panel
£1,948.53 (inc VAT: £2,338.24)
Summary
The Ziton 71501N ZP3 Series, ZP3-4L, is a 4-loop analogue control panel designed to recognize real fires sooner while minimizing false alarms. It features advanced panel design and high sensitivity smoke and fire sensing. Available in 2 and 4 loop configurations, it accommodates up to 508 sensing addresses. For larger sites, panels can be networked to control over 30,000 devices from up to 64 control panels.
Each loop can connect up to 127 line devices, all with unique addresses, allowing precise location pinpointing and polling every two seconds. The panel processes environmental variations and compares them to known fire data before activating alarms.
Features
- Supports up to 127 devices per loop
- Onboard printer module and facility boards for expansion
- Remote diagnostics for off-site fault diagnosis and configuration
- Selectable features including day/night control and automatic self-test
- Loop powered sounders and intelligent loop isolation
- Password protection and event log
- Automatic contamination adjustment for each detector
- Common sounders, coincidence alarm, and zone walk test
Specifications
General
- Communication Ports : Z-Port 1 Planner, RS232 Z-Port 2 Network, RS485 / fibre optic, USB port
- Maximum System Capacity (Device Count) : Up to 130K
- Network Size (Nodes) : Up to 256
Electrical
- Power Consumption : Power Supply Input 230 VAC 50 Hz ±10%, 0.75 Amps or 24-50 VDC
- Current Consumption : Quiescent (4 loops with 0 devices) 420 mA @ 24 VDC, Alarm (4 loops with 25% zones in alarm) 820 mA @ 24 VDC
Loop
- Maximum Loop Capacity : 4
- Quantity of Devices per Loop : 127
- Cable Rating : 2 core screened (to local codes and standards)
Zone
- Maximum Zone Capacity : Up to 508
Output
- Fire Alarm Signalling : 1 x volt free N/O or N/C
- Fault Signalling : 1 x volt free N/O or N/C
- Notification Sounder Circuits : 2 x dual (monitored & programmable)
Standby Battery
- Capacity : Up to 28
- Batteries Supported in Housing : 2 x 12 V SLA
Physical
- Form Factor : Medium
- Physical Dimensions : 540 x 410 x 137 mm (H x W x D)
- Shipping Weight : 11 kg
- Colour : Grey (Pantone 428c)
- Mounting Type : Recessed mount, Surface mount
- Material : Sheet steel
Environmental
- Operating Temperature : -5 to +40°C
- Relative Humidity : 10 to 90% noncondensing
- IP Rating : IP30: for indoor use only
