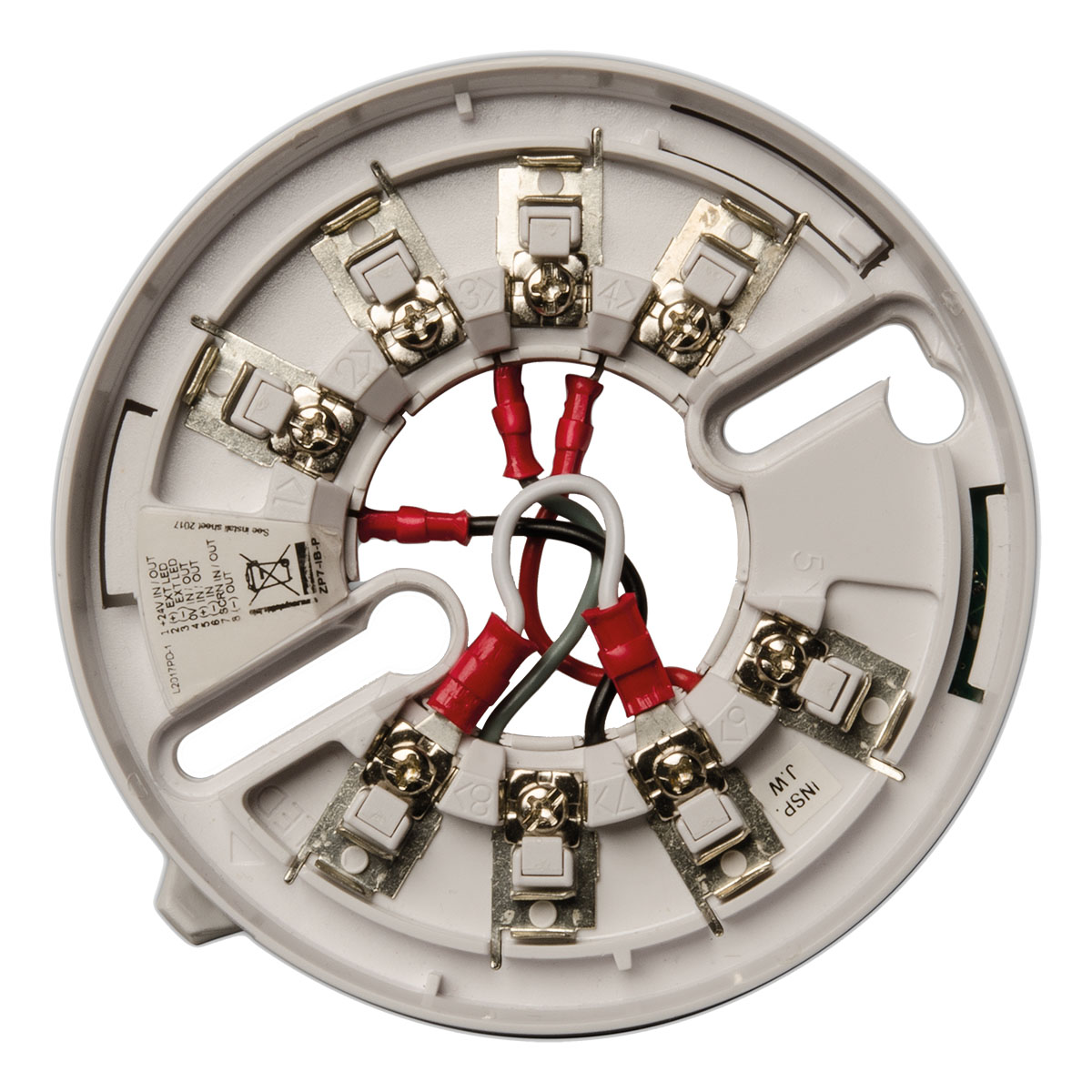

Ziton ZP7 Detector Mounting Base with Isolator
£18.29 (inc VAT: £21.95)
Summary
The ZP7-IB2-P is a sophisticated point detector base with an integrated isolator, designed to enhance the reliability and safety of Ziton addressable fire detection systems. This isolator base is engineered to protect fire detection loops against short circuits, supporting up to 127 base isolators per loop in enhanced mode. It is fully compatible with legacy systems, ensuring seamless integration with older operating modes. The ZP7-IB2-P allows for easy removal or replacement of detectors without disrupting loop wiring, making it a versatile and user-friendly solution for modern fire safety systems. Designed for Class-A, return loop wiring configurations, it ensures that in the event of a short circuit, only the affected section is isolated, allowing the rest of the system to function normally. This product meets the stringent recommendations of local codes such as BS5839-1, providing peace of mind with its robust loop monitoring capabilities.
Features
- Provides short circuit loop protection for up to 127 devices on the loop
- LED indication of isolation activation
- Optional base lock facility
- Complies with BS5839-1 recommendations
- Backwards compatible with legacy base and standalone isolators
Specifications
- Compatible Products : All ZP addressable systems
- Status Indication LED : Yellow
- Connectivity : 2-wire loop
- Addressing Method : No addressing required
- Power Supply Type : Loop powered
- Operating Voltage : 16 to 20 VDC
- Current Consumption : 180 µA (quiescent), 230 µA (activated – legacy mode), 4 mA (activated – enhanced mode)
- Cable Specification : Class-A return loop (loop resistance <75 Ω)
- No. Of Cable Cores : 2
- Terminals : 8
- Monitoring : Short circuit
- Isolation Type : Negative line break
- Quantity Per Loop : ≤16 (legacy mode), ≤127 (enhanced mode)
- Series Resistance : <0.060 Ω
- Impedance Requirements : <16 Ω (between panel and first isolator), <16 Ω (between adjacent isolators), <16 devices between adjacent isolators
- Physical Dimensions : 109 x 23 mm (Ø x H)
- Net Weight : 79 g
- Colour : Polar white
- Mounting Type : Surface mount
- Cable Entries : 1
- Material (Body) : Moulded thermoplastic
- Operating Temperature : -10 to +55°C
- Storage Temperature : -10 to +55°C
- Relative Humidity : 10 to 95% noncondensing
- Environment : Indoor
- IP Rating : IP21
- Compliancy : CE, REACH, RoHS 2, WEEE
- Certification : CPR, EN54-17
