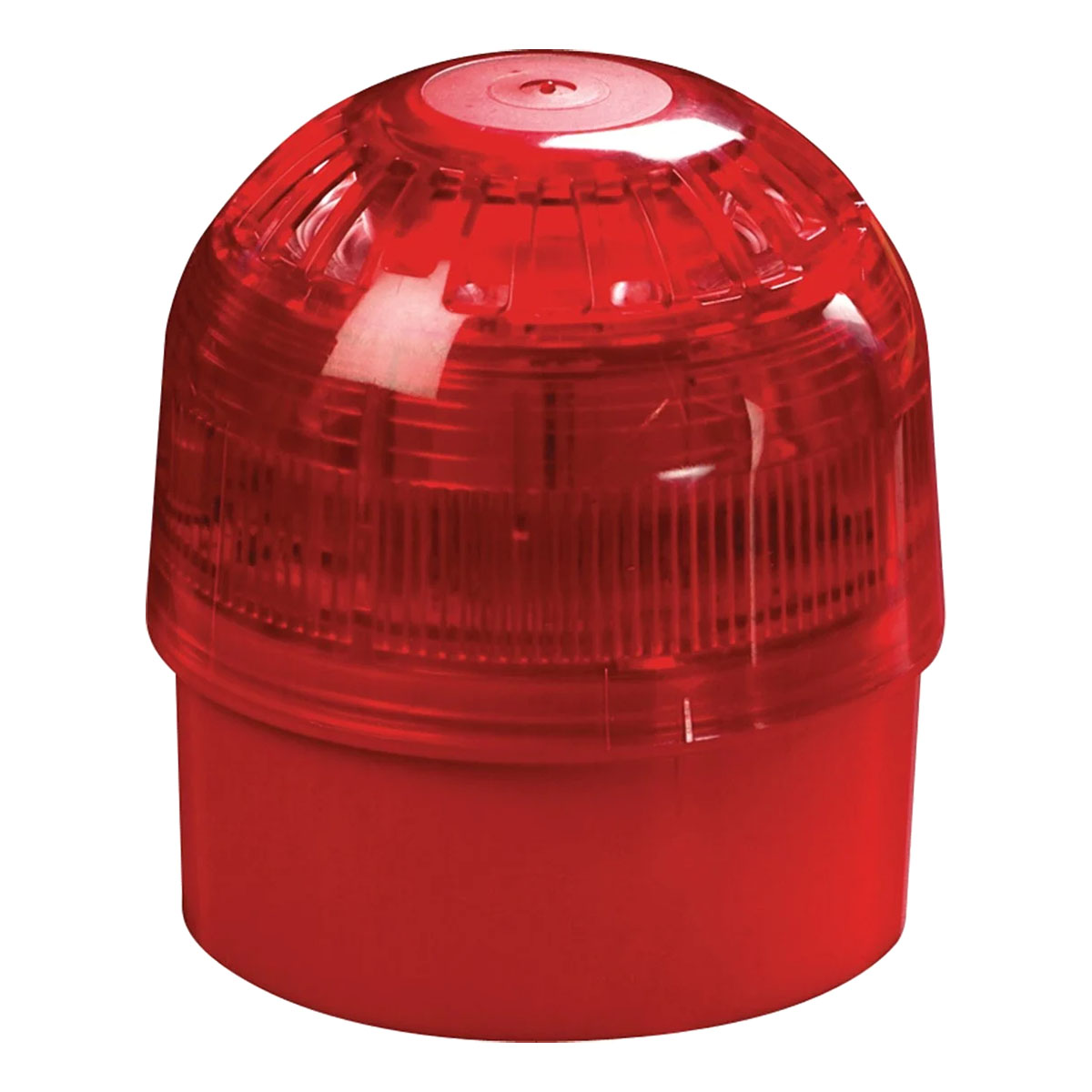

Apollo XP95 Intelligent Open-Area Sounder & Beacon
Summary
The Apollo XP95 Open-Area Alarm Devices are designed to provide reliable and effective alarm signalling in open areas. These devices are loop-powered and can be wall-mounted, making them versatile for various installations. They are compatible with XP95, Discovery, and CoreProtocol systems, ensuring seamless integration with existing fire alarm systems.
The range includes sounders, visual indicators, and sounder visual indicators, all designed to fit a common mounting base. These devices are engineered to deliver high sound output and visual alerts, ensuring clear communication of alarm signals in emergency situations.
Features
- Three tones on standard devices; Apollo, Slow-whoop, and DIN
- Two volume settings: 92 dB (A) and 100 dB (A)
- Synchronisation of tones and flashes
- Individual and group addressing
- EN54 versions available with built-in isolator
- Wire-to-base for simple interchange of devices
- Device locking facility
Specifications
- Supply Voltage : 17-28 V dc polarity sensitive
- Maximum Loop Current Consumption at 24V dc : Quiescent 333 µA, Switch-on surge 1.2 mA for <1 second, Operated sounder 5 mA, Operated sounder Visual indicator 8 mA, Operated Visual indicator 3.1 mA
- Sound Output – Maximum : 100 dB (A)
- Operating Temperature : -10°C to +55°C
- Humidity (no condensation) : 0-95% RH
- Designed to IP Rating : IP65
- Standards and Approvals : CPR, LPCB, VdS, VNIIPO, CNBOP, CCMG, Kazakhstan
- Dimensions : 104 mm diameter x 97.5 mm height
- Weight : Sounder 225 g, Sounder Visual indicator 260 g, Visual indicator 205 g
- Materials : Body – red polycarbonate, Diffuser – translucent polycarbonate
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.25 kg |
|---|---|
| Lens Colour | Red, Clear |
| Colour | |
| Device Type | |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| Maximum Sound Level | |
| Protocol | |
| Short Circuit Isolator | |
| System Type |
