Serage 4 Channel PoE 4K NVR
Summary

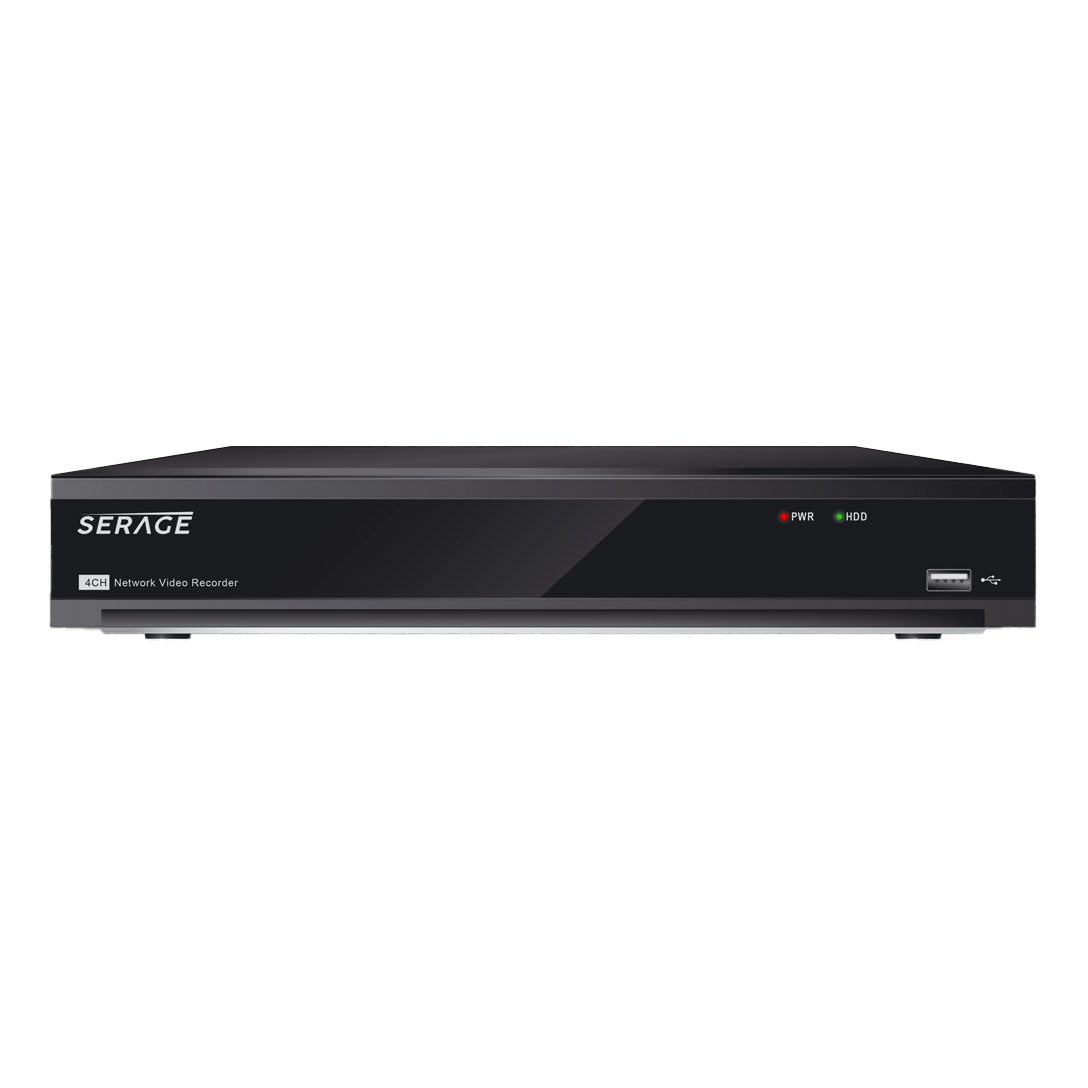

The Serage SR8004NP is a 4-channel network video recorder with 4 integrated 802.3at/af PoE ports, enabling direct plug-and-play connection of IP cameras without the need for a separate PoE switch. Supporting resolutions up to 8MP (4K) across all channels, the unit delivers high-definition recording with H.265+ compression to minimise storage usage.
Despite its compact form factor, the SR8004NP includes Serage’s full AI analytics suite, covering facial recognition, automatic number plate recognition (ANPR), people counting, crowd density analysis, and pedestrian and vehicle detection. This makes it a capable solution for small businesses, retail units, and residential or light commercial installations where intelligent detection is a requirement.
The SR8004NP is fully NDAA-compliant, confirming its suitability for government, enterprise, and publicly funded projects. Its 300 × 227 × 53mm chassis is designed for shelf or rack mounting, and remote access is provided via the Serage AI mobile application for iOS, Android, and Windows, with real-time push notifications for motion and alarm events.
Features
- 4-channel network video recorder supporting resolutions up to 8MP (4K)
- 4 built-in PoE ports (802.3at/af) for direct plug-and-play IP camera connection
- NDAA-compliant — suitable for government, enterprise, and federally funded installations
- AI features include facial recognition, ANPR, people counting, crowd density, and pedestrian and vehicle detection
- 50 Mbps incoming bandwidth and 64 Mbps outgoing bandwidth
- H.265 / H.265+ / H.264 / H.264+ video compression for efficient storage
- Frame rates up to 45fps at 4K, 90fps at 4MP, and 180fps at 2MP
- Dual outputs: HDMI (up to 4K/EDID) and VGA (up to 4K/EDID)
- 1 SATA HDD bay supporting up to 10TB capacity
- 1 RJ45 Ethernet port (10/100 Base-T) for network connectivity
- USB 2.0 port (front) and USB 2.0 port (rear) for local backup and peripherals
- 4 alarm inputs and 1 alarm output
- Audio line input and audio output via RCA connectors
- Motion detection with adjustable sensitivity (levels 1–8)
- Event alerts via beep, email, and mobile app push notification
- Max 4-channel simultaneous playback
- Playback at fast forward/rewind (2×, 4×, 8×, 16×) and slow forward (1/2×, 1/4×, 1/8×, 1/16×)
- Serage AI mobile application for iOS, Android, and Windows remote access
- Web browser support: IE10/11, Safari v12.1+, Firefox v52+, Chrome v57+, Edge v79+
- OSD available in 20+ languages including English, French, Spanish, German, Arabic, Japanese, and more
- Factory reset via 10-second button press
- Compact form factor suitable for shelf or rack mounting (shelving required)
- DC 48V / 1.2A power input; 5W power consumption (excluding HDD)
- Operating temperature range: -10°C to +50°C
FAQs
How many cameras can the SR8004NP support?
The SR8004NP supports up to 4 IP cameras simultaneously. All 4 cameras can be connected directly via the unit’s built-in PoE ports, eliminating the need for a separate PoE switch.
What is the maximum recording resolution?
The SR8004NP records at resolutions up to 8MP (4K) across all 4 channels, and is compatible with IP cameras from 720p through to 8MP.
What AI detection features are available?
The SR8004NP supports facial recognition, automatic number plate recognition (ANPR), people counting, crowd density monitoring, and pedestrian and vehicle detection. Some AI functions require a compatible AI-capable camera to be connected.
Is the SR8004NP NDAA-compliant?
Yes. The SR8004NP is fully compliant with the National Defense Authorization Act (NDAA), confirming it is safe for use by government agencies, enterprises, and organisations receiving federal funding.
How much storage does the SR8004NP support?
The unit has a single SATA hard drive bay supporting drives of up to 10TB. The HDD is not included and must be purchased separately.
Can I view the recorder remotely?
Yes. Remote viewing is available via the Serage AI mobile application, which supports iOS, Android, and Windows. Real-time push notifications can be configured for motion detection and alarm events. Web browser access is also supported across major browsers.
What video outputs does the SR8004NP have?
The recorder provides one HDMI output and one VGA output, both supporting resolutions up to 3840×2160 (4K) via EDID negotiation.
What compression formats are supported?
The SR8004NP supports H.265, H.265+, H.264, and H.264+ compression. H.265+ provides the most efficient storage usage, helping to significantly reduce hard drive consumption compared to older compression standards.
Is rack mounting supported?
The SR8004NP is designed for shelf or rack mounting, though a rack mount shelf or shelving unit is required separately. Its compact 300 × 227 × 53mm chassis makes it well suited to installations with limited space.
Specifications
- Model: SR8004NP
- Channels: 4
- Supported Resolutions: 8MP / 5MP / 3MP / 2MP (1080P) / 1.3MP (960P) / 1.0MP (720P)
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Audio Compression: G.711A / G.711U
- Frame Rate: 4K: 45fps; 4MP: 90fps; 2MP: 180fps
- Inputs Bandwidth: 50 Mbps
- Outputs Bandwidth: 64 Mbps
- AI: Yes — facial recognition, ANPR, people counting, crowd density, pedestrian and vehicle detection
- PoE Ports: 4 × RJ45, 802.3at/af
- Ethernet Ports: 1 × RJ45 10/100 Base-T
- HDMI Output: 1 × up to 3840×2160 (EDID)
- VGA Output: 1 × up to 3840×2160 (EDID)
- USB Ports: USB 2.0 × 1 (front); USB 2.0 × 1 (rear)
- HDD Bays: 1 × SATA, up to 10TB
- Audio In: 1 × RCA (line in)
- Audio Out: 1 × RCA
- Alarm Input/Output: 4 in / 1 out
- Simultaneous Playback: Up to 4 channels
- Mobile Application: Serage AI (iOS, Android, Windows)
- Web Browser Support: IE10/11, Safari v12.1+, Firefox v52+, Chrome v57+, Edge v79+
- OSD Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimensions (W × D × H): 300 × 227 × 53mm
- Rack Mount: Shelving required
- Input Voltage/Current: DC 48V / 1.2A; PoE switch 48V
- Power Consumption: 5W (excluding HDD)
- Operating Temperature: -10°C to +50°C
- Humidity: Less than 90% RH
- NDAA Compliant: Yes
Downloads
- Datasheet (Adobe PDF)
